Driver Front Seat Module (DSM)

501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Base Part Number: 14C708

Removal

NOTE: LHD driver seat shown, RHD driver seat similar.

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current DSM installed. If the current DSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the DSM following the on-screen instructions.

2. Position the driver front seat to the full rearward and full upward position.

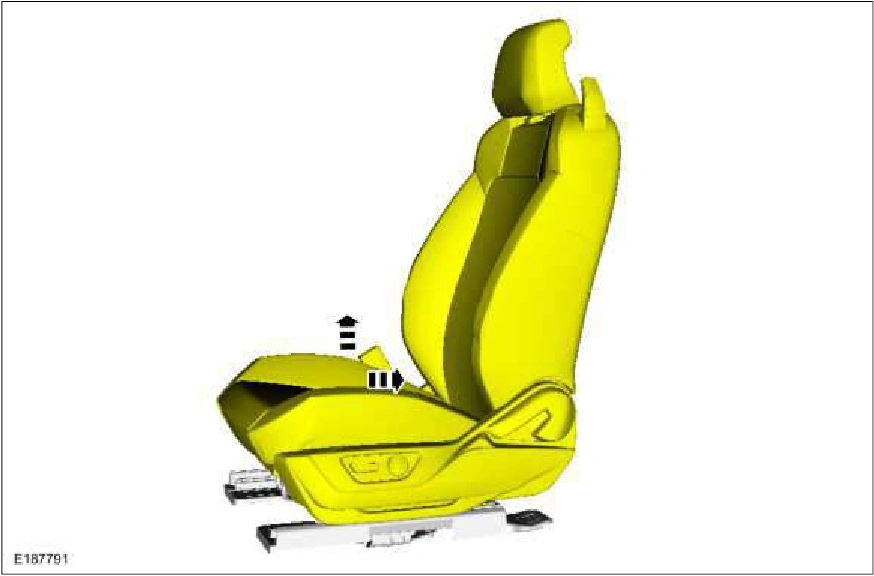

Driver Front Seat Module (DSM) — original illustration 1, reference 1107Original colors & callouts · Select to enlarge

3. Disconnect the DSM electrical connectors.

Source reference 1107
