Front Seat Cushion Blower Motor

501-10A Front Seats

2016 MustangReference 1,152 / 6,619HTML edition
← Chapter contentsProcedure contents

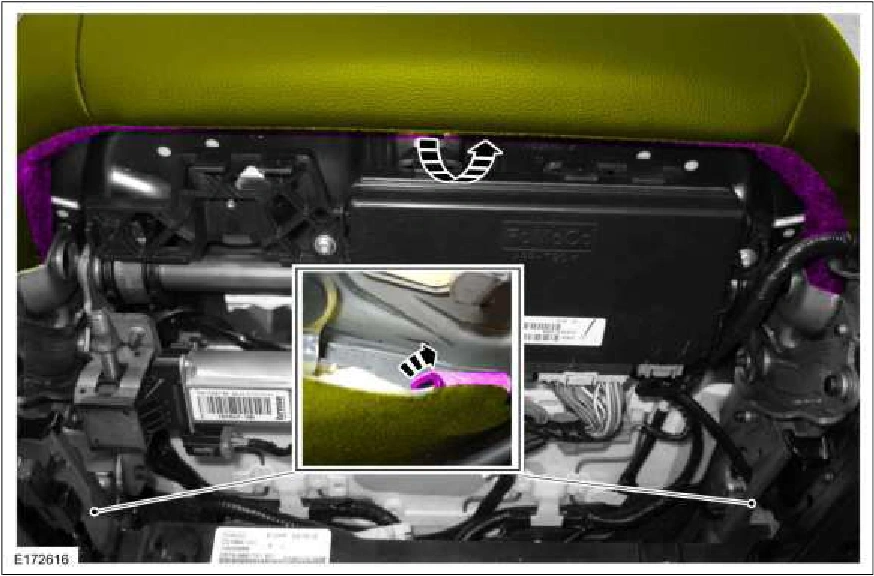

Front Seat Cushion Blower Motor — original illustration 1, reference 1152Original colors & callouts · Select to enlarge

Passenger seat

6. NOTE: Original equipment (OE) OCS shown, service kit similar.

NOTE: If equipped with an OCS service kit, the OCS will be adhered to the bottom of the front seat cushion.

Remove the OCS pin-type retainers.

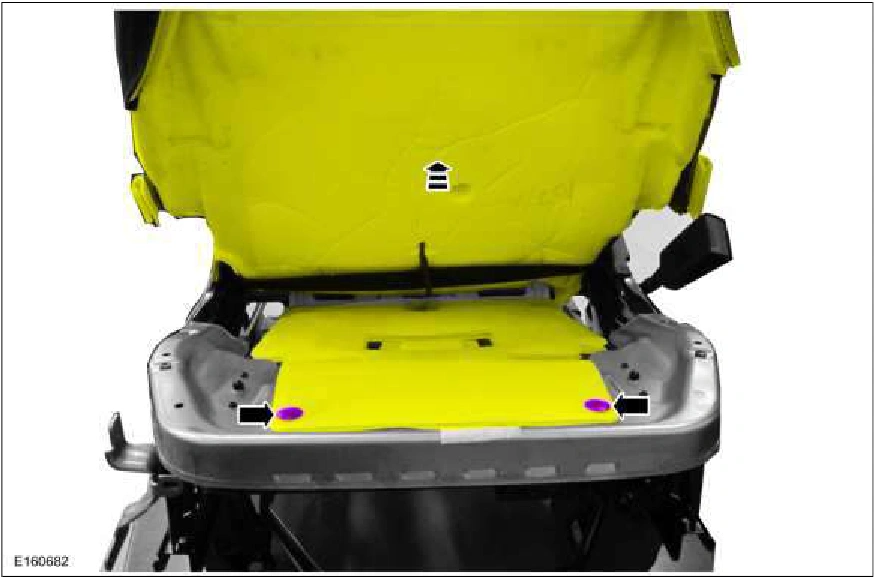

Front Seat Cushion Blower Motor — original illustration 2, reference 1152Original colors & callouts · Select to enlarge

7. NOTE: If equipped with an OCS service kit, the OCS is adhered to the bottom of the front seat cushion foam. This requires the cushion cover, foam and OCS to be positioned aside as an assembly.

Position the front of the seat cushion cover, foam and OCS assembly upward.

Source reference 1152
