Front Seat Cushion Blower Motor — 2016 workshop reference 1153

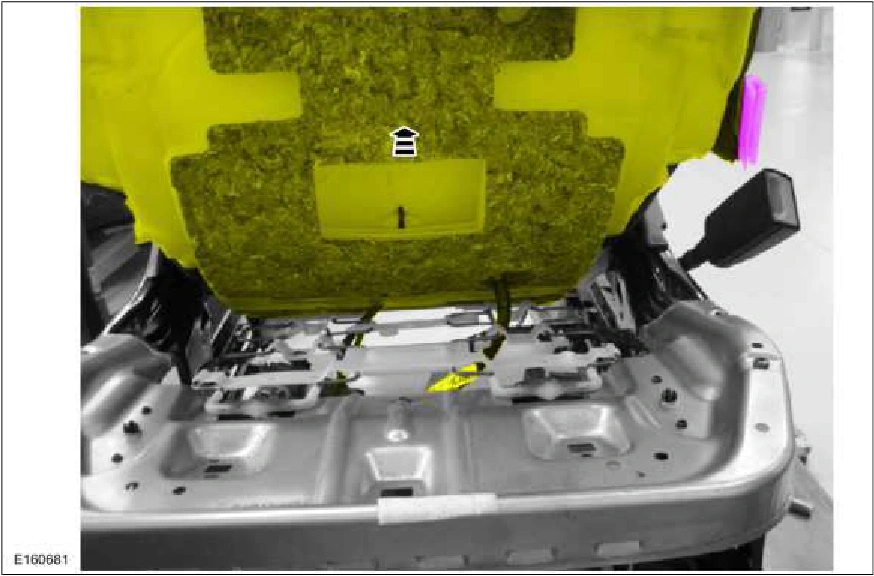

Front Seat Cushion Blower Motor — original illustration 1, reference 1153Original colors & callouts · Select to enlarge

All seats

8. Remove the seat cushion blower motor screws.

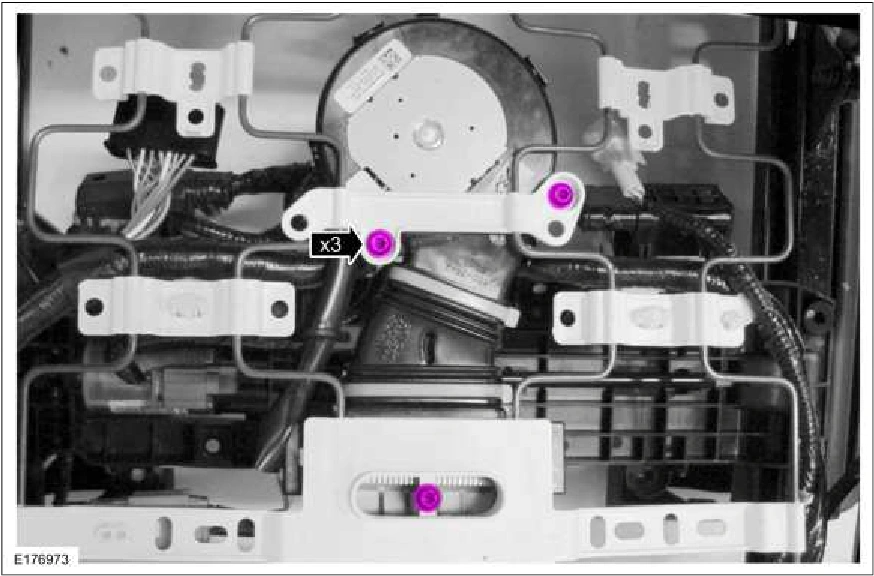

Front Seat Cushion Blower Motor — original illustration 2, reference 1153Original colors & callouts · Select to enlarge

9. Remove the seat cushion blower motor.

1. Disconnect the seat cushion blower motor electrical connector.

2. Release the locking tabs.

Source reference 1153
