501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 09/1/2015

Front Seat Cushion Cover

Removal

NOTE: LHD driver seat shown, all others similar.

NOTE: Removal steps in this procedure may contain installation details.

All seats

1. Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

2. Release the retaining clip and remove the seat recline handle.

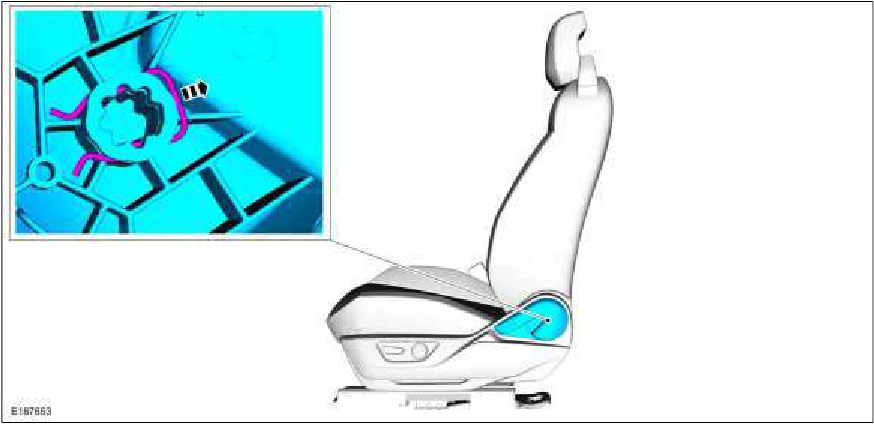

Front Seat Cushion Cover — original illustration 1, reference 1156Original colors & callouts · Select to enlarge

Manual driver seat

3. Remove the height adjusting handle.

1. Raise the height adjusting handle.

2. Release the locking tab.

3. Slide the height adjusting handle forward.

Source reference 1156
