Front Seat Cushion Cover — 2016 workshop reference 1158

Front Seat Cushion Cover — original illustration 1, reference 1158Original colors & callouts · Select to enlarge

Passenger manual seat

6. Remove the side shield screws.

Front Seat Cushion Cover — original illustration 2, reference 1158Original colors & callouts · Select to enlarge

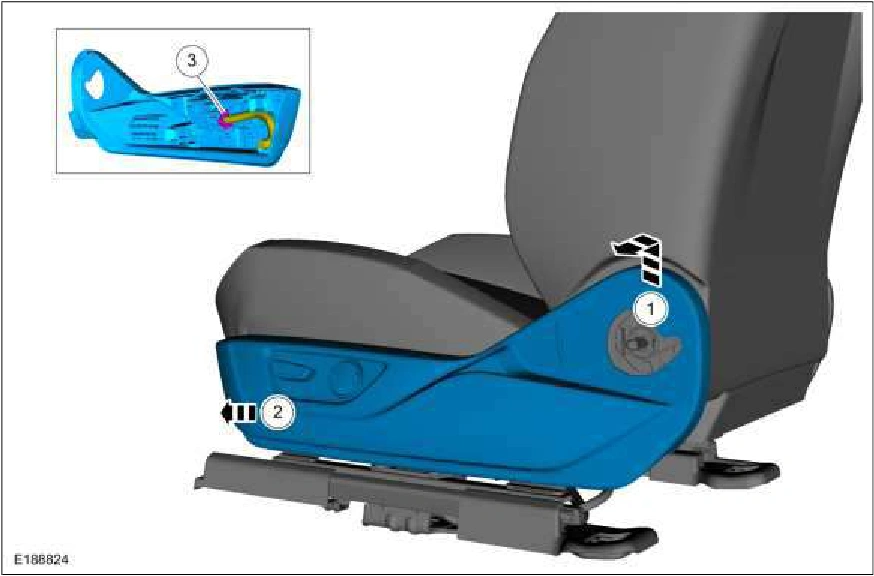

7. Remove the side shield.

1. Pull the rear of the side shield out.

2. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.

3. From underneath, squeeze the retainers together and pull out on the side shield.

4. Slide the side shield forward.

Source reference 1158
