Front Seat Cushion Cover — 2016 workshop reference 1161

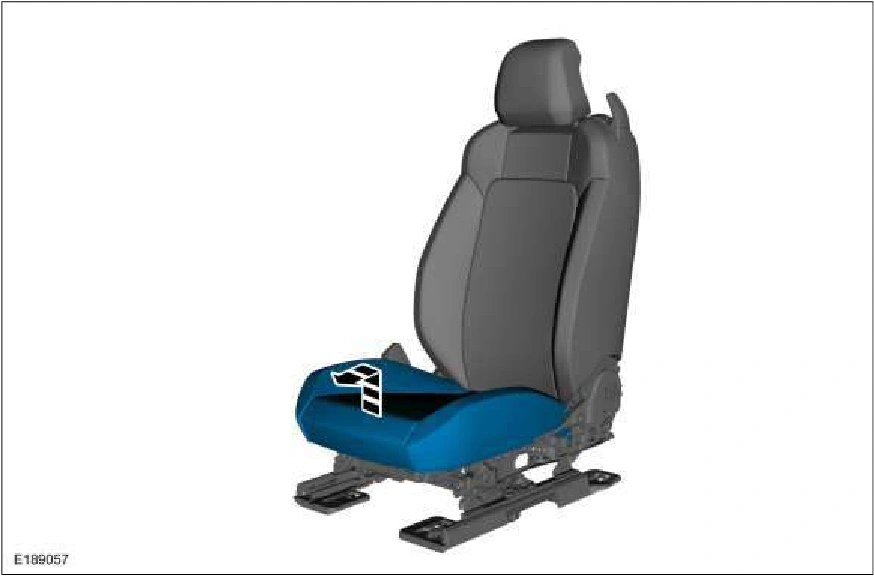

Front Seat Cushion Cover — original illustration 1, reference 1161Original colors & callouts · Select to enlarge

Passenger seat with service kit

12. NOTE: When equipped with an OCS service kit, the OCS is adhered to the bottom of the front seat cushion foam. This requires the cushion cover, foam and OCS to be positioned aside as an assembly.

With the seat cushion cover, foam and OCS assembly positioned upward, remove the pin-type retainers.

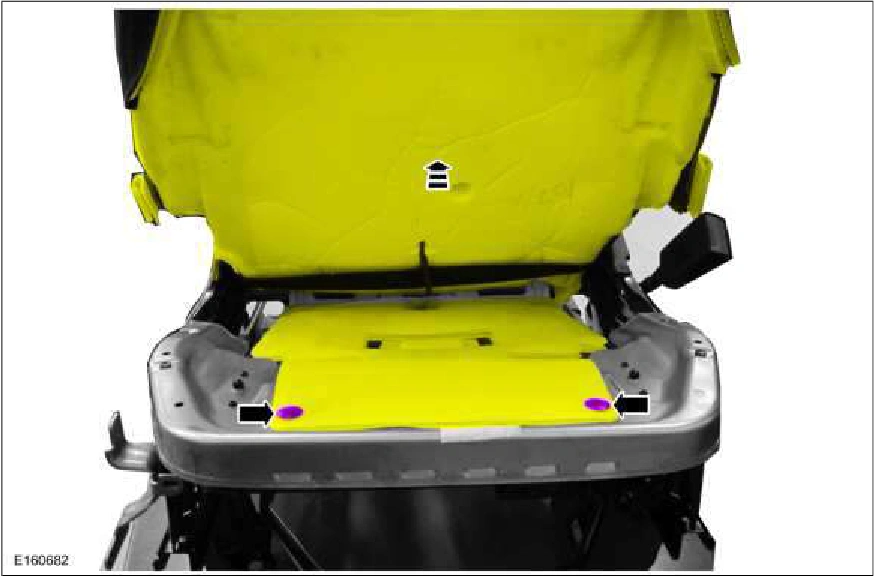

Front Seat Cushion Cover — original illustration 2, reference 1161Original colors & callouts · Select to enlarge

13. NOTICE: Using excessive force when bending the bracket tab can damage the OCS sensor

housing.

NOTE: Follow the unique instructions or graphic for this step in the installation.

Disconnect the electrical connector, bend the bracket tab away and slide the OCS sensor off the bracket.
