Front Seat Cushion Cover — 2016 workshop reference 1160

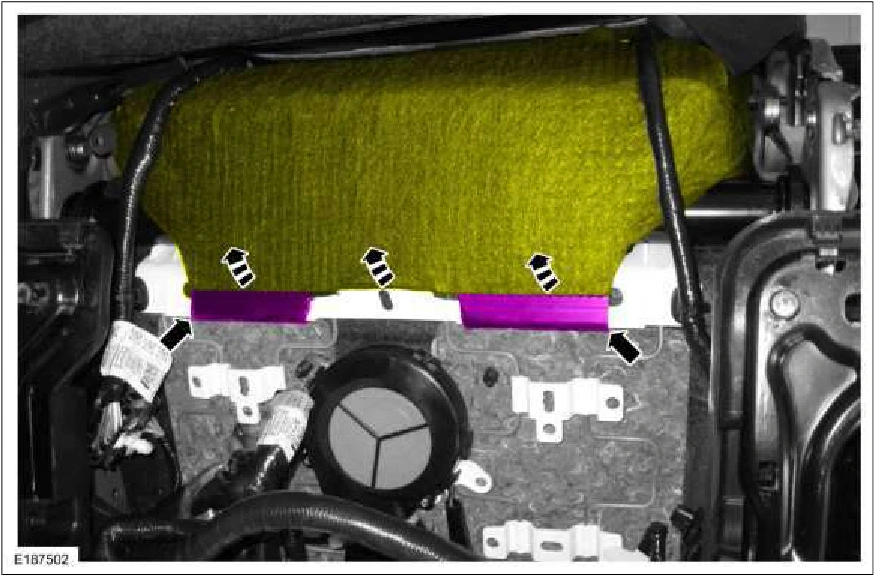

Front Seat Cushion Cover — original illustration 1, reference 1160Original colors & callouts · Select to enlarge

10. NOTE: For passenger seats equipped with an OCS service kit, the OCS will be adhered to the bottom of the seat cushion foam.

Release the J-clips and position the front of the seat cushion cover and foam assembly upwards.

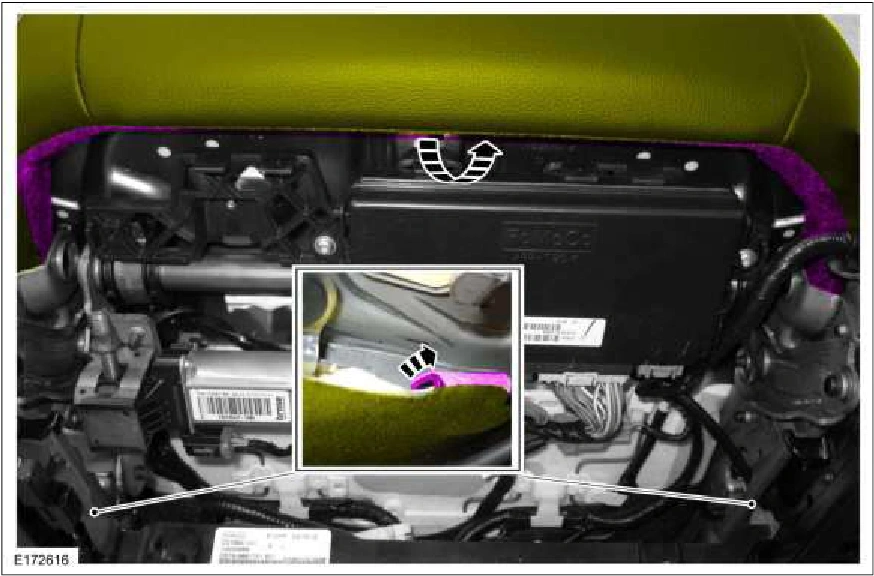

Front Seat Cushion Cover — original illustration 2, reference 1160Original colors & callouts · Select to enlarge

Driver seat and passenger seat with OEM (Original Equipment Manufacturer)

11. Remove the front seat cushion cover and foam as an assembly.
