Front Seat Cushion Cover — 2016 workshop reference 1157

Front Seat Cushion Cover — original illustration 1, reference 1157Original colors & callouts · Select to enlarge

Power seats and manual driver seat

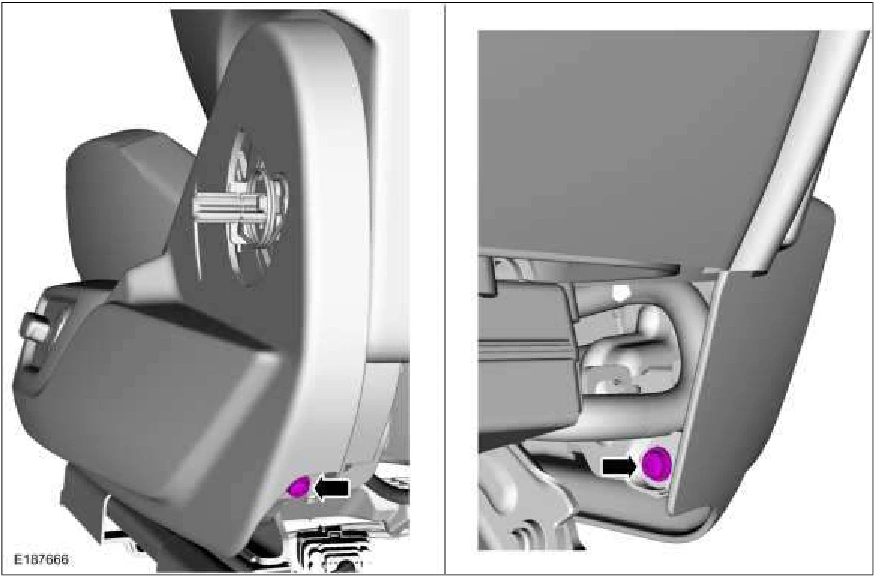

4. Remove the side shield screws.

Front Seat Cushion Cover — original illustration 2, reference 1157Original colors & callouts · Select to enlarge

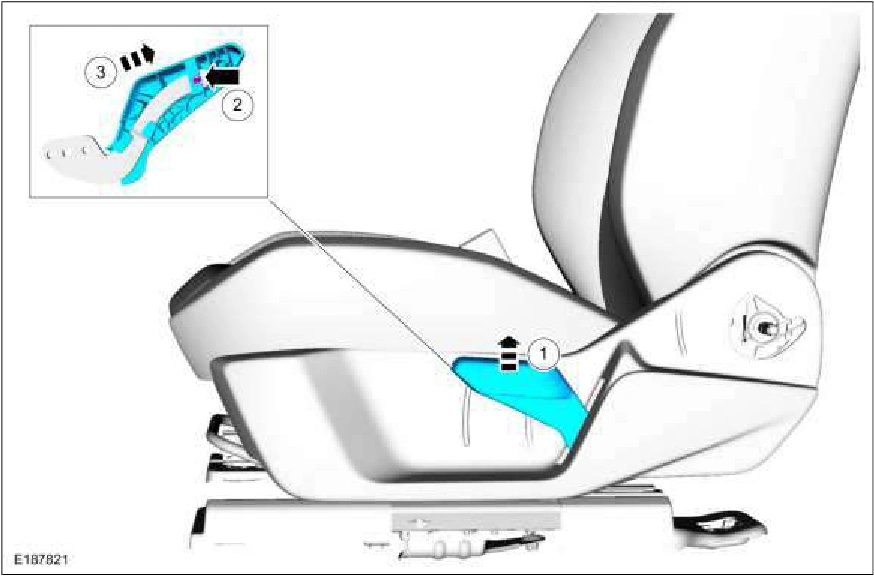

5. Remove the side shield.

1. Lift up on the rear of the side shield and pull outward.

2. Push the side shield forward.

3. If equipped, disconnect the electrical connector.
