Front Seat Cushion Cover — 2016 workshop reference 1159

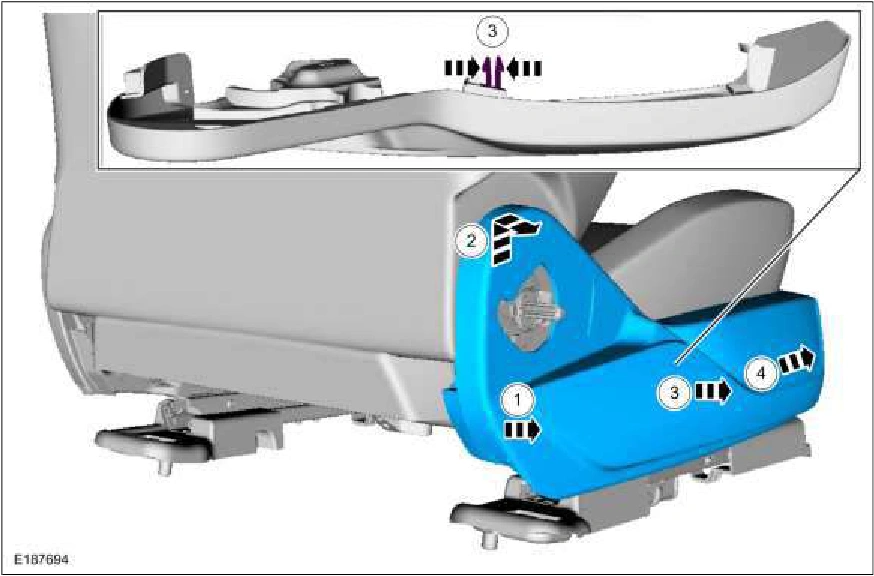

Front Seat Cushion Cover — original illustration 1, reference 1159Original colors & callouts · Select to enlarge

All seats

8. If equipped, position the front seat backrest cover.

1. Release the wire harness electrical connector retainer(s).

2. Detach the front seat backrest cover straps from the seat cushion frame.

3. Position the front seat backrest cover aside.

Front Seat Cushion Cover — original illustration 2, reference 1159Original colors & callouts · Select to enlarge

9. Detach the J-clips and position the cushion cover aside.

Source reference 1159
