Front Seat Cushion Cover

501-10A Front Seats

2016 MustangReference 1,163 / 6,619HTML edition
← Chapter contentsProcedure contents

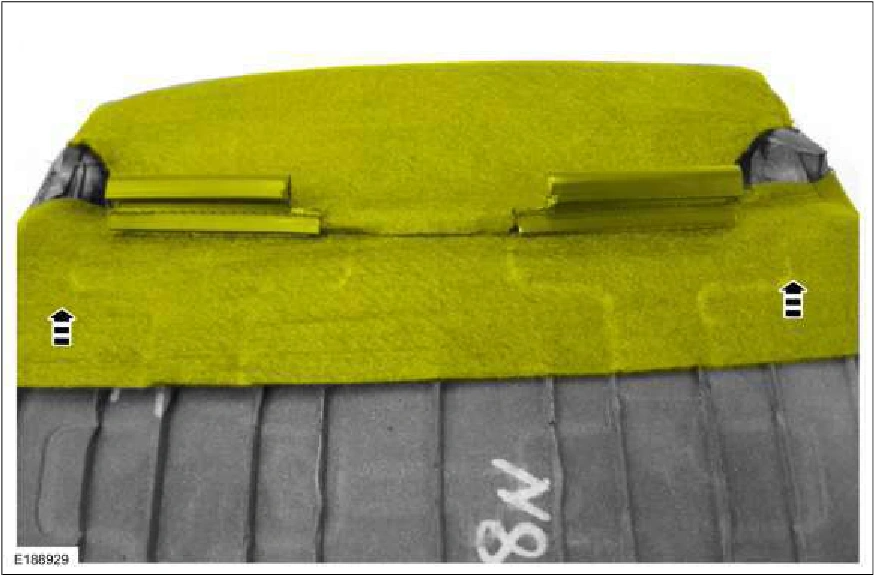

Front Seat Cushion Cover — original illustration 1, reference 1163Original colors & callouts · Select to enlarge

16. NOTICE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be

torn from the seat cushion foam pad.

NOTICE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.

NOTE: This step is only necessary when installing a new component.

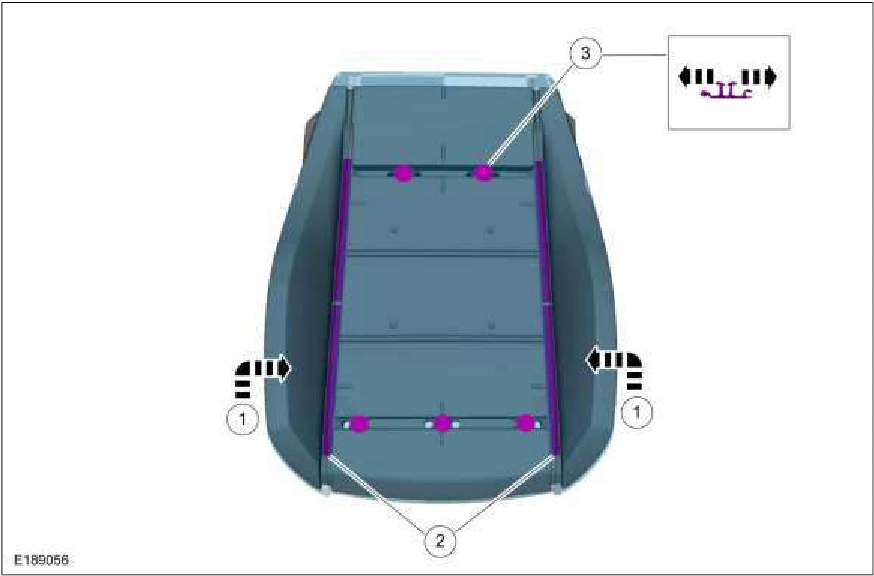

Remove the seat cushion cover.

1. Position the seat cushion cover.

2. Release hook-and-loop strips.

3. Release the hook-and-arrows.

Front Seat Cushion Cover — original illustration 2, reference 1163Original colors & callouts · Select to enlarge
