501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Front Seat Power Lumbar Assembly

Removal

NOTE: LHD driver seat shown, all others similar.

1. Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

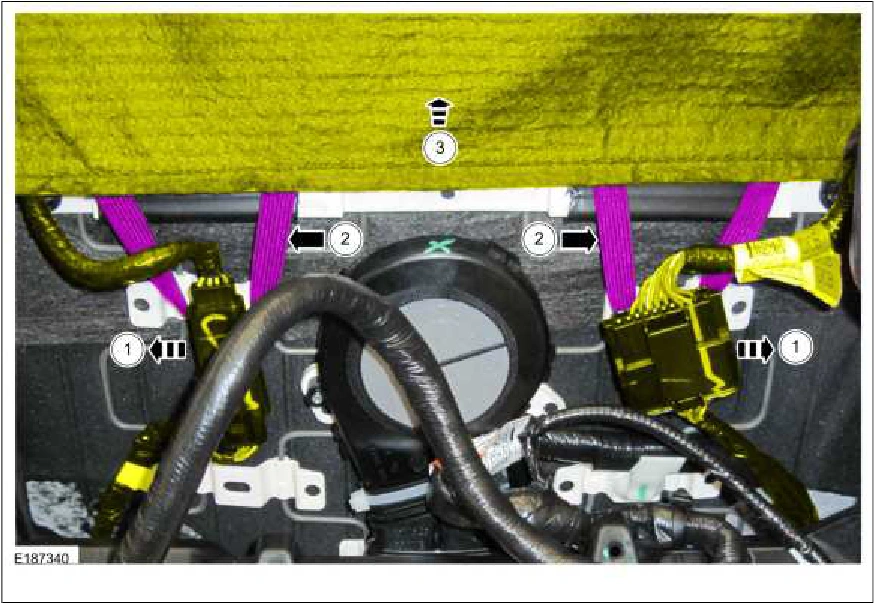

2. Position the front seat backrest cover.

1. Release the wire harness electrical connector retainers.

2. Detach the front seat backrest cove straps.

3. Position the front seat backrest cover aside.

Front Seat Power Lumbar Assembly — original illustration 1, reference 1166Original colors & callouts · Select to enlarge

3. Remove the backrest cover insert.

1. Release the pin-type retainers.

2. Position the backrest cover upwards.
