Front Seat Power Lumbar Assembly — 2016 workshop reference 1169

Front Seat Power Lumbar Assembly — original illustration 1, reference 1169Original colors & callouts · Select to enlarge

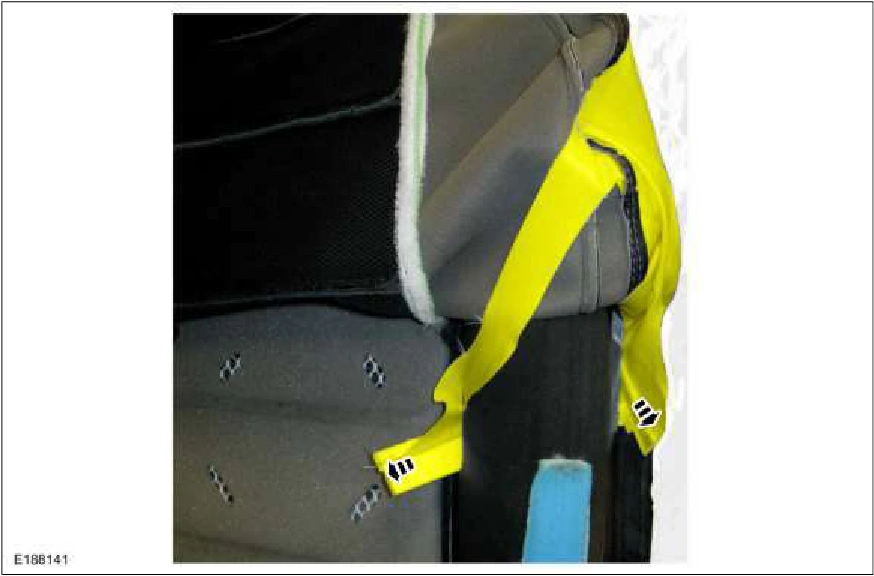

8. Release the backrest cover J-clips and position the backrest cover upward.

Front Seat Power Lumbar Assembly — original illustration 2, reference 1169Original colors & callouts · Select to enlarge

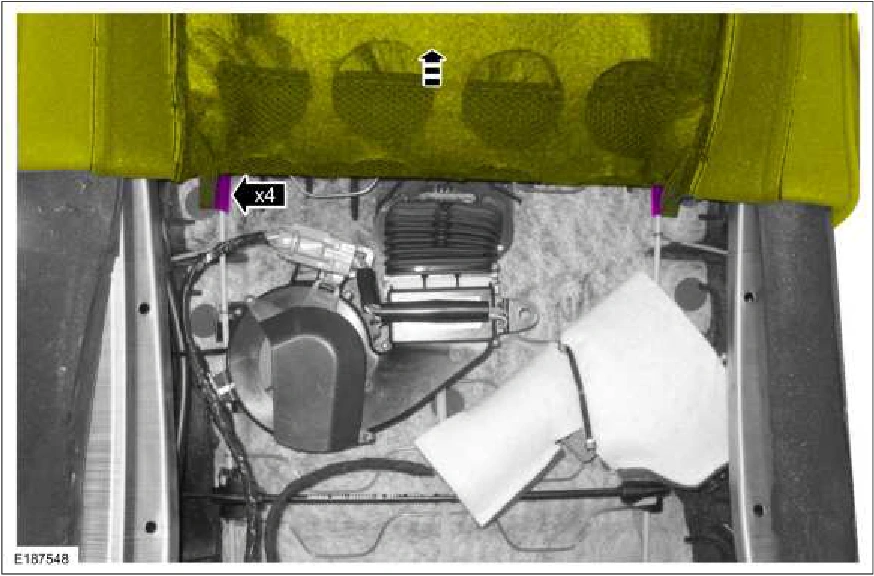

9. If equipped, remove the backrest blower motor. Refer to: Front Seat Backrest Blower Motor (501-10 Front Seats) .

10. Disconnect the electrical connector, release the J-hooks and remove the lumbar assembly.
