501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Front Seat Track Motor

Base Part Number: 14547

Special Tool(s) / General Equipment

Electric Drill

Removal

NOTE: LHD driver seat shown, all others similar.

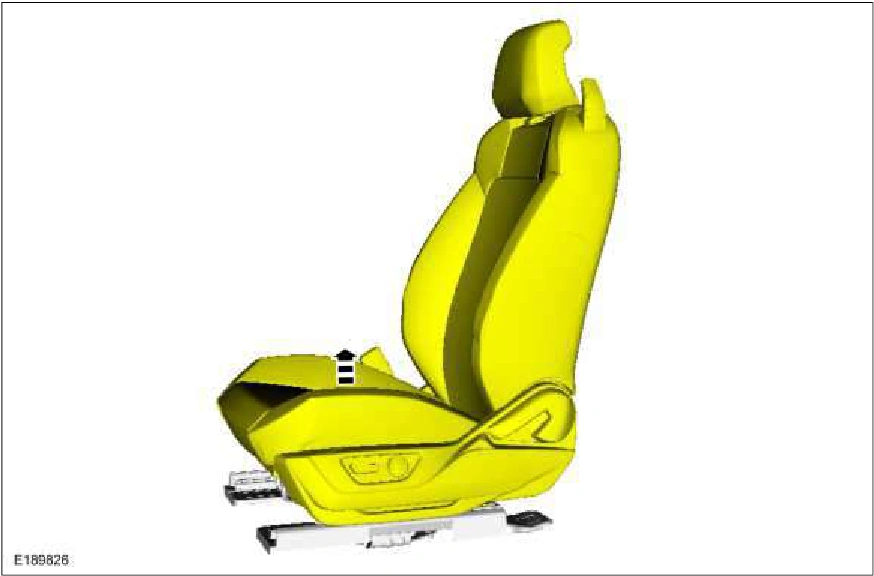

1. NOTE: Positioning the seat fully upward provides access to service the seat track motor with the seat in the vehicle.

Position the front seat to the full upward position.

Front Seat Track Motor — original illustration 1, reference 1172Original colors & callouts · Select to enlarge

2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

3. Release the retaining clip and remove the front seat recline handle.
