Front Seat Track Motor — 2016 workshop reference 1173

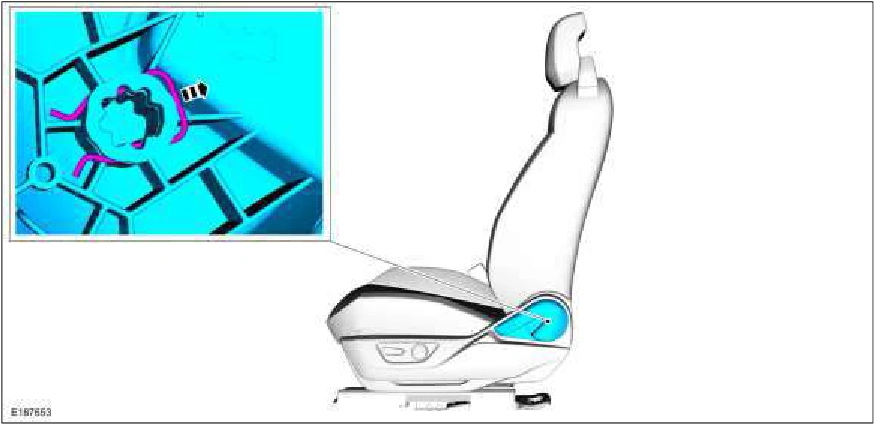

Front Seat Track Motor — original illustration 1, reference 1173Original colors & callouts · Select to enlarge

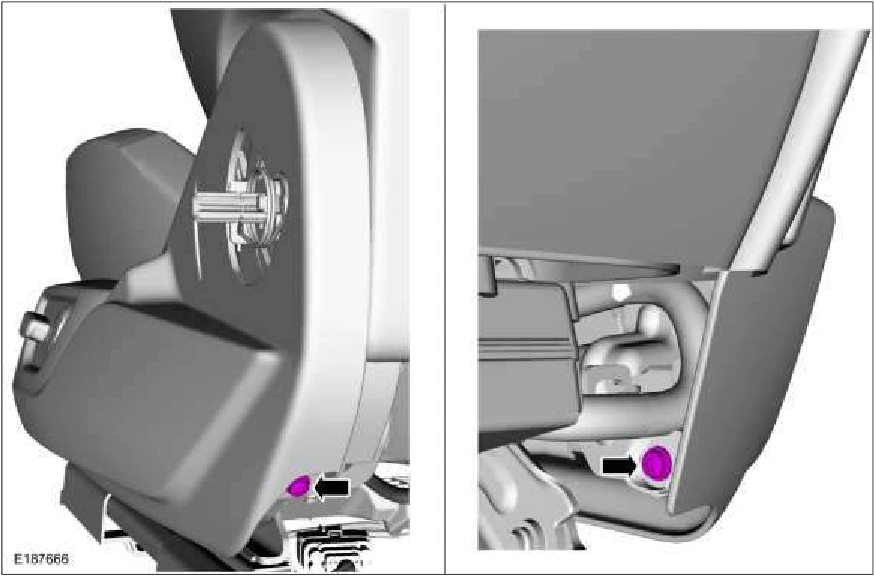

4. Remove the side shield screws.

Front Seat Track Motor — original illustration 2, reference 1173Original colors & callouts · Select to enlarge

5. Remove the side shield.

1. Lift up on the rear of the side shield and pull outward.

2. Push the side shield forward.

3. Disconnect the electrical connector.
