Front Seat Track Motor — 2016 workshop reference 1176

2. NOTICE: When using a drill to move the seat track, do not move the seat track to its forward or

rearward end of travel stops, otherwise a new seat track must be installed.

NOTE: Be sure to drive the seat track evenly or the track will bind during movement.

NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position the seat track.

Insert the original seat track motor drive cables and drive the gearbox and seat track uniformly until the front edge of the upper and lower seat tracks are flush. Use the General Equipment: Electric Drill

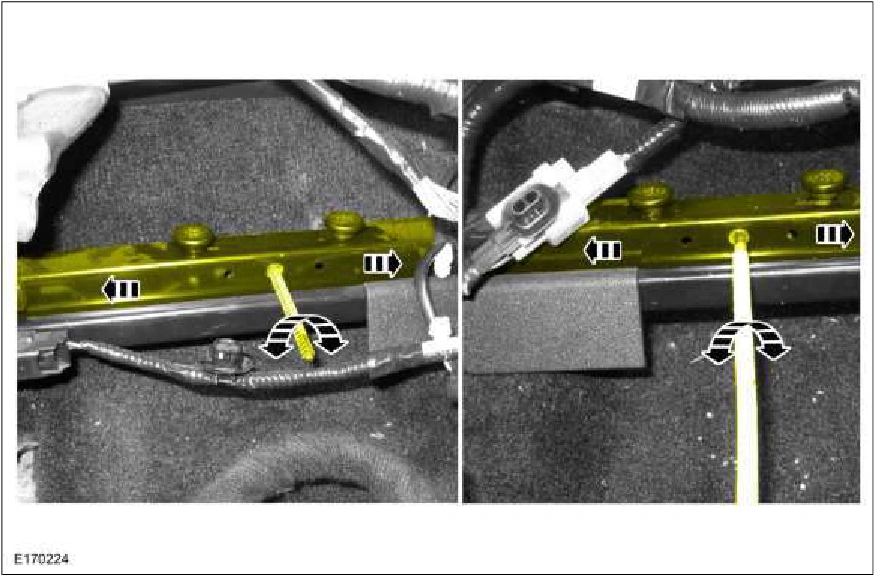

Front Seat Track Motor — original illustration 1, reference 1176Original colors & callouts · Select to enlarge

3. The front edges of the upper and lower seat track rails must align with each other on both sides of the seat .

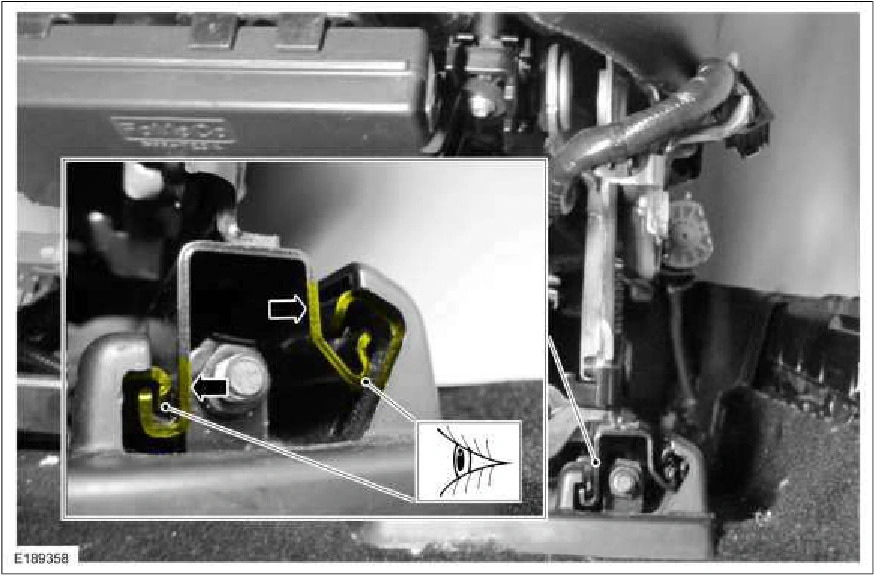

Front Seat Track Motor — original illustration 2, reference 1176Original colors & callouts · Select to enlarge
