Front Seat Track Motor — 2016 workshop reference 1179

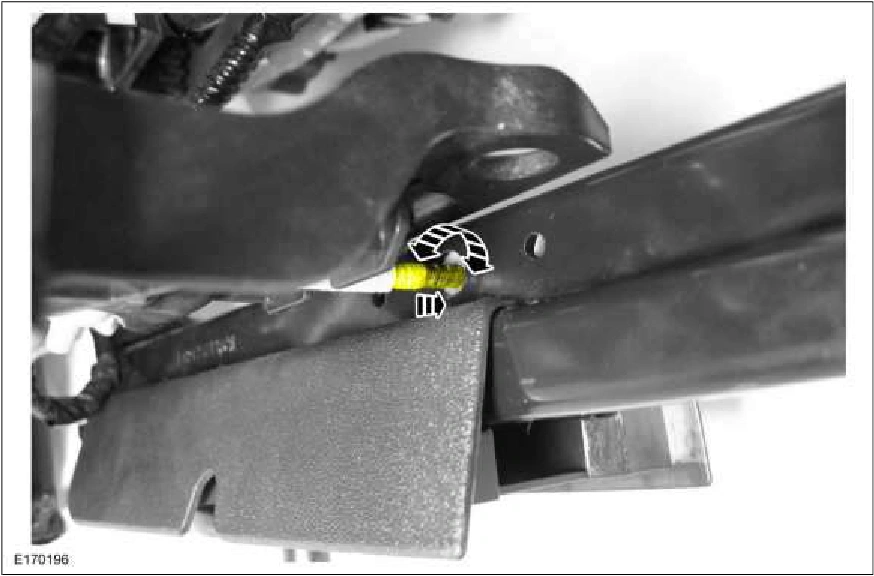

Front Seat Track Motor — original illustration 1, reference 1179Original colors & callouts · Select to enlarge

9. NOTICE: Do not severely bend the short drive cable during installation or damage to the cable will

occur.

Insert the short drive cable into the seat track gearbox.

1. Position the seat track motor while inserting the short cable into the seat track gearbox.

2. Rotate the short drive cable to verify engagement to seat track gearbox.

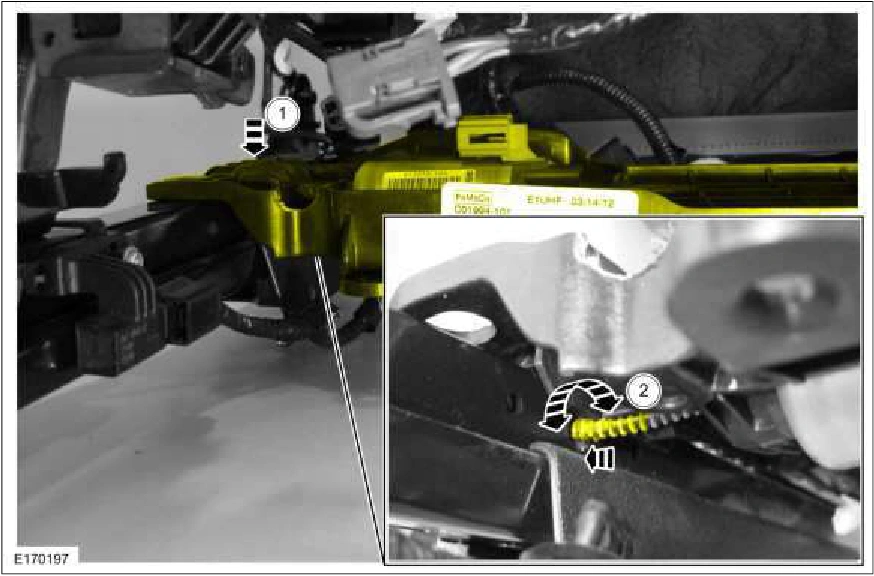

Front Seat Track Motor — original illustration 2, reference 1179Original colors & callouts · Select to enlarge

10. NOTICE: Do not cross-thread the bolts as they are load bearing. If the bolts are cross-threaded, a

new seat track must be installed.

NOTE: Seat track components and wiring harness are removed for clarity.

Install the seat track motor and install the new bolts in the sequence shown.

Source reference 1179
