Front Seat Track Motor — 2016 workshop reference 1180

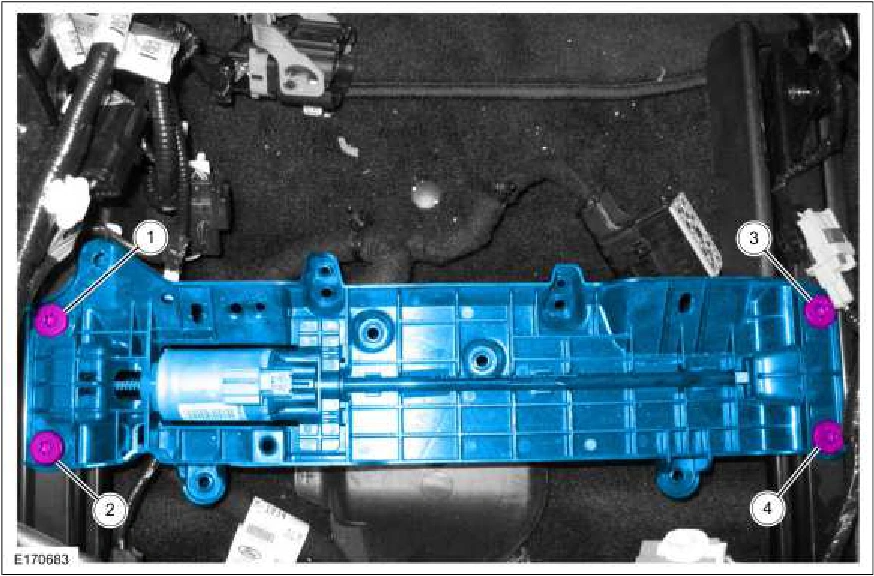

1. Install the rear inboard bolt. Torque : 21 lb.ft (28 Nm)

2. Install the front inboard bolt. Torque : 21 lb.ft (28 Nm)

3. Install the rear outboard bolt. Torque : 21 lb.ft (28 Nm)

4. Install the front outboard bolt. Torque : 21 lb.ft (28 Nm)

Front Seat Track Motor — original illustration 1, reference 1180Original colors & callouts · Select to enlarge

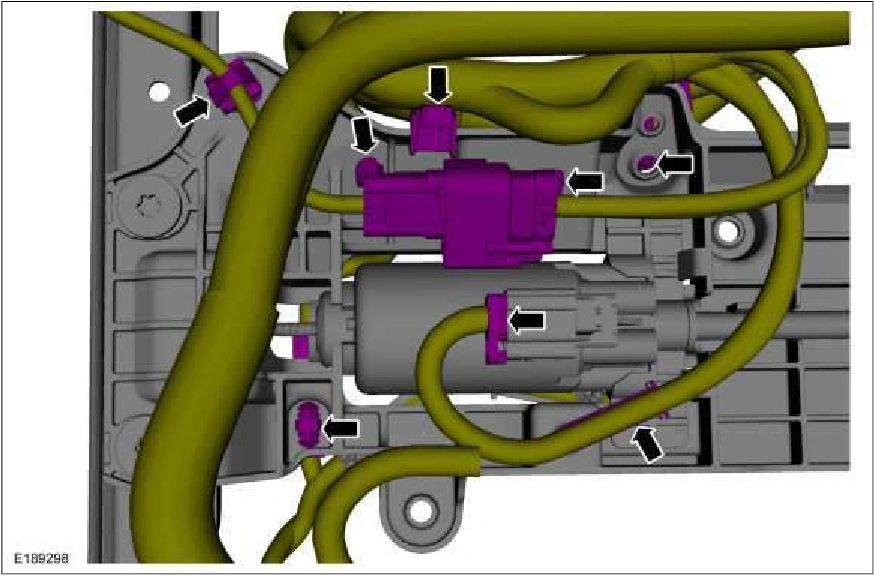

11. NOTE: Seat track components are removed for clarity.

Connect the seat track motor electrical connector and engage the wire harness retainers.

Front Seat Track Motor — original illustration 2, reference 1180Original colors & callouts · Select to enlarge

12.
