Front Seat Track Motor — 2016 workshop reference 1181

Install the side shield.

1. Connect the electrical connector.

2. Position the side shield and push it rearward.

3. Push the rear of the side shield inward.

4. Push the rear of the side shield downward.

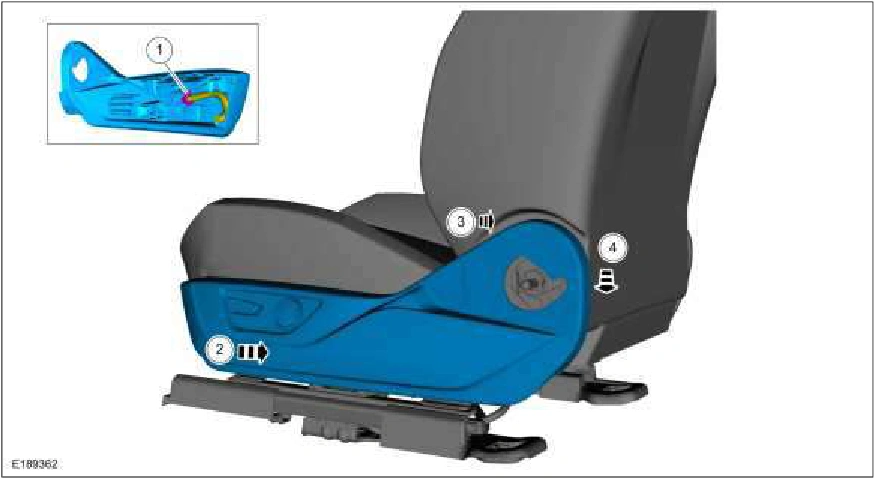

Front Seat Track Motor — original illustration 1, reference 1181Original colors & callouts · Select to enlarge

13. Install the side shield screws.

Front Seat Track Motor — original illustration 2, reference 1181Original colors & callouts · Select to enlarge

14. Install the retaining clip and the front seat recline handle.

Source reference 1181
