Front Seat Track Motor — 2016 workshop reference 1178

Front Seat Track Motor — original illustration 1, reference 1178Original colors & callouts · Select to enlarge

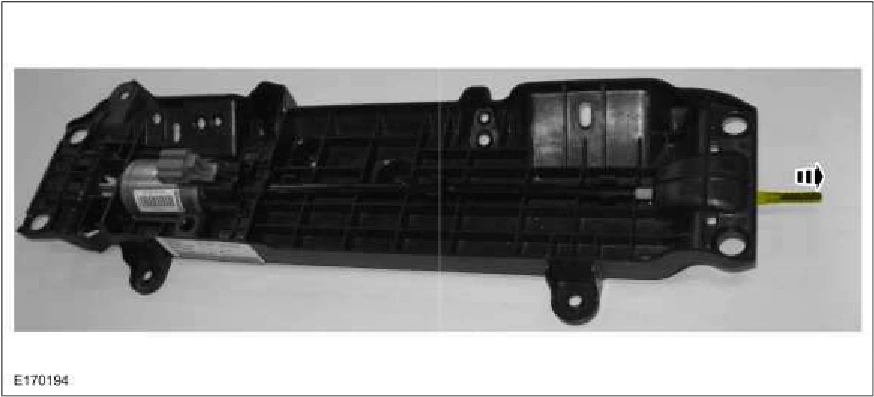

7. Insert the long drive cable into the seat track gearbox.

Front Seat Track Motor — original illustration 2, reference 1178Original colors & callouts · Select to enlarge

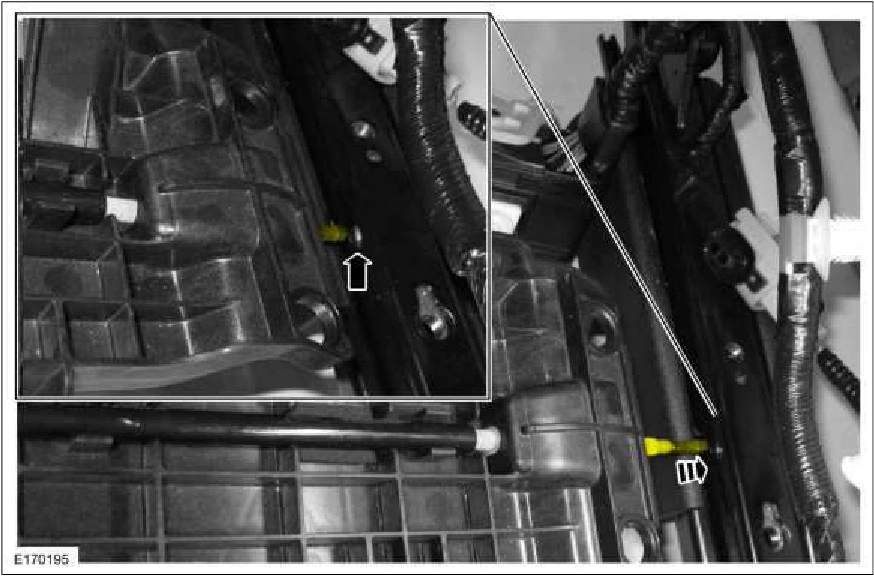

8. Rotate the long drive cable to verify engagement to seat track gearbox.
