Front Seat Track Motor — 2016 workshop reference 1177

4. On both sides, remove the seat track motor bolts.

Front Seat Track Motor — original illustration 1, reference 1177Original colors & callouts · Select to enlarge

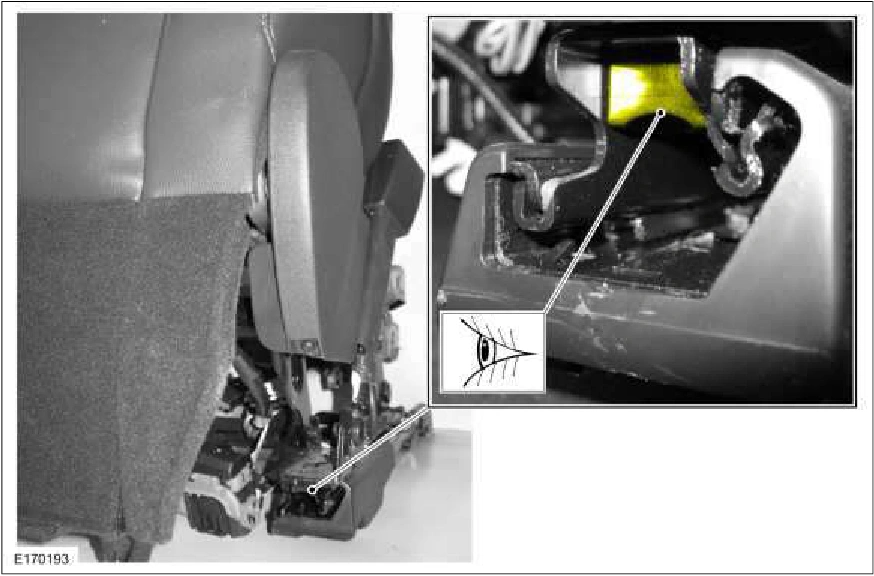

5. NOTE: Install a new seat track if the block is not in place.

Verify the block is in place at the rear of the inboard seat track rail.

Front Seat Track Motor — original illustration 2, reference 1177Original colors & callouts · Select to enlarge

6. To aid installation. Pull the long drive cable on the new motor assembly out of the sheathing.
