Glass, Frames and Mechanisms - System Operation and Component Description
System Operation

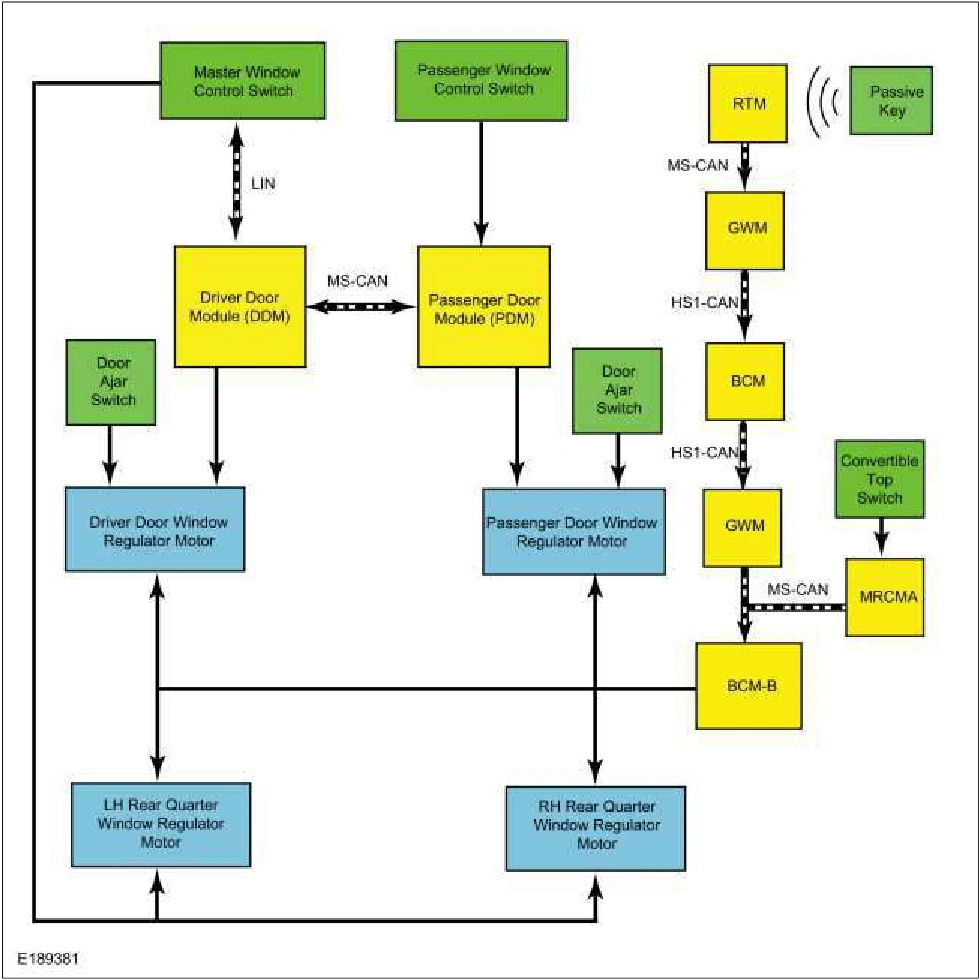

System Diagram - Power Windows (With Memory Driver Seat)
Network Message Chart - Power Windows (With Memory Driver Seat)
Passenger Door Module (PDM) Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Passenger window command | DDM | When activating the front passenger window from the master window control switch, the passenger window command is sent from the DDM to the PDM. |
