Network Message Chart - Power Windows (Without Memory Driver Seat)
Body Control Module B (BCM-B) Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
Convertible top window drop command | Movable Roof Control Module A (MRCMA) | When the convertible top switch is activated, the Movable Roof Control Module A (MRCMA) sends a message to the Body Control Module B (BCM-B), which then sends a global open signal/command to fully open all windows. |
Global open command | BCM | When the RKE transmitter is used to initiate a global open command, the BCM sends the message to the Body Control Module B (BCM-B) which then sends a global open signal/command to fully open all windows. |

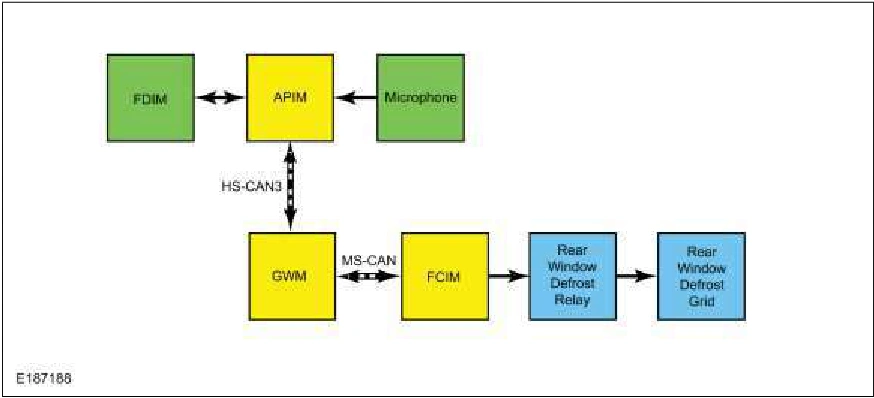

System Diagram - Rear Window Defrost
Network Message Chart - Rear Window Defrost
Front Controls Interface Module (FCIM) Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Climate control requests | APIM (if equipped with touchscreen) | The climate control requests message contains the rear window defrost request information. When the rear window defrost function is requested using voice command or the button is selected on the touchscreen, this input activates the rear window defrost system. |
Power Window Operation
NOTE: If the vehicle battery is disconnected while the door window is moving, the one-touch up feature (and obstacle detection) is disabled. The convertible rear window motors do NOT need to be initialized as they do not have one-touch up or one-touch down functions.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
The power windows operate when the delayed accessory relay is active. The delayed accessory relay (non-serviceable) is located in the BCM. Both door windows are equipped with obstacle detection and one-touch up and one-touch down functionality. If an obstacle is detected as the window glass is moving upward, the window
