Body Control Module B (BCM-B) Network Input Messages
Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
Convertible top window drop command | Movable Roof Control Module A (MRCMA) | When the convertible top switch is activated, the Movable Roof Control Module A (MRCMA) sends a message to the Body Control Module B (BCM-B), which then sends a global open signal/command to fully open all windows. |
Global open command | BCM | When the RKE transmitter is used to initiate a global open command, the BCM sends the message to the Body Control Module B (BCM-B) which then sends a global open signal/command to fully open all windows. |

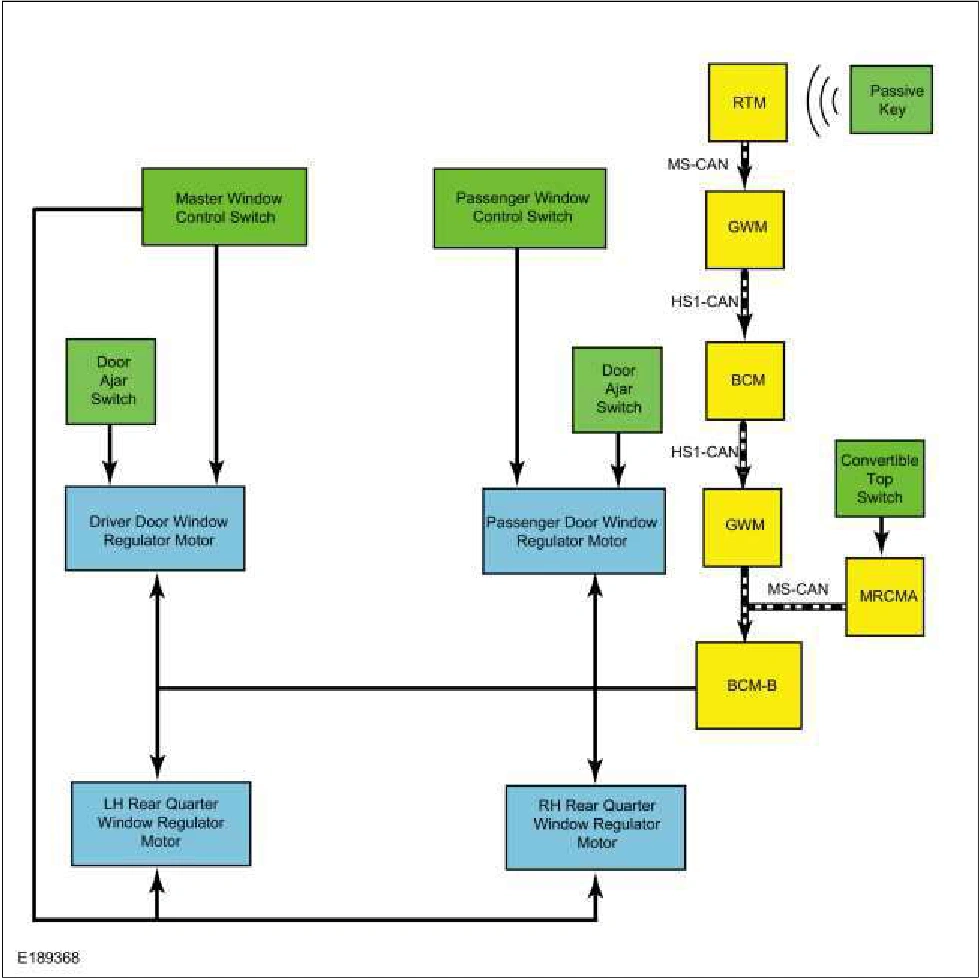

System Diagram - Power Windows (Without Memory Driver Seat)
