Door Window Glass Adjustment - Coupe

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,249 / 6,619HTML edition

Door Window Glass Adjustment - Coupe — original illustration 1, reference 1249Original colors & callouts · Select to enlarge

11. Loosen both glass clamps, adjust the front door window glass as necessary and tighten the glass clamps. Torque : 80 lb.in (9 Nm)

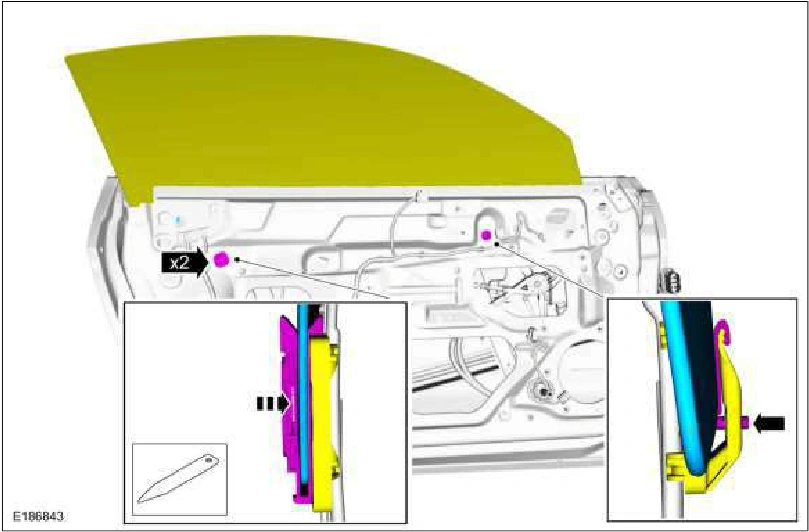

Door Window Glass Adjustment - Coupe — original illustration 2, reference 1249Original colors & callouts · Select to enlarge

12. Close the door.

Source reference 1249
