Door Window Glass Adjustment - Coupe

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,250 / 6,619HTML edition

← Chapter contents Procedure contents

Door Window Glass Adjustment - Coupe — original illustration 1, reference 1250Original colors & callouts · Select to enlarge

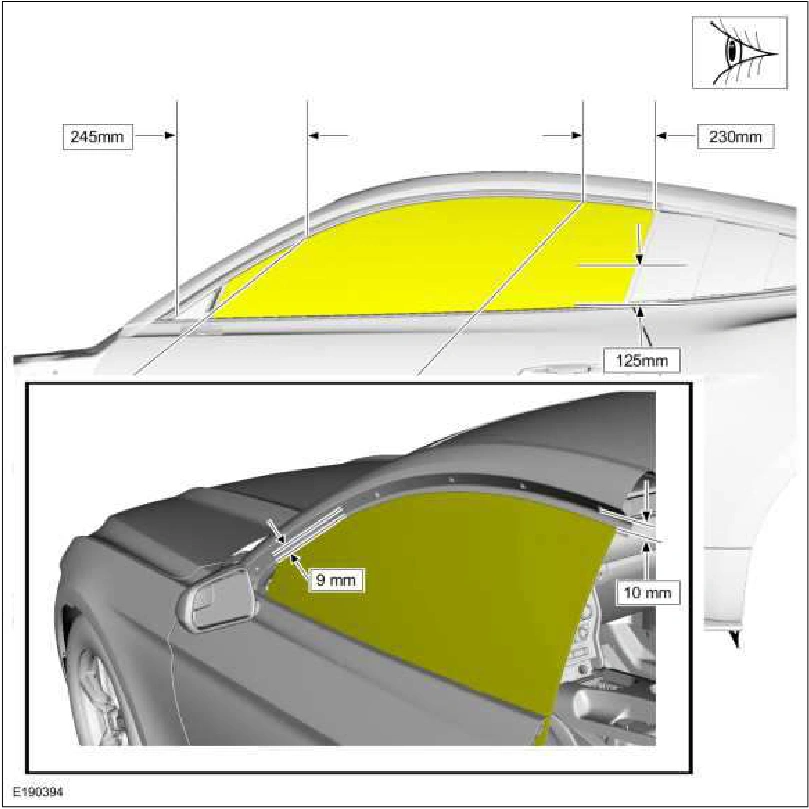

13. Check the door glass up/down, fore/aft to body dimensions.

Door Window Glass Adjustment - Coupe — original illustration 2, reference 1250Original colors & callouts · Select to enlarge

In/Out adjustment

14. Close the door.

Source reference 1250
