Door Window Glass Adjustment - Coupe — 2016 workshop reference 1253

18. Adjust the regulator rails equally in and out to avoid binding.

1. Loosen the lower window regulator nuts.

2. Adjust the regulator rails equally in and out to avoid binding.

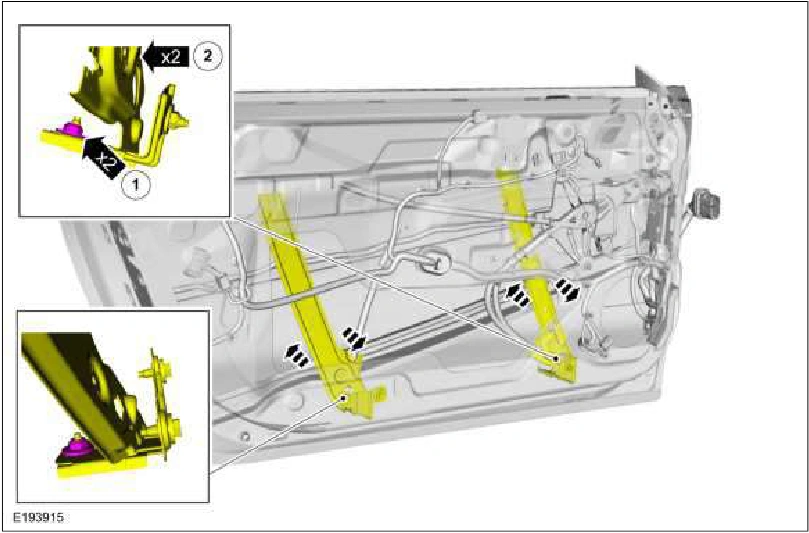

Door Window Glass Adjustment - Coupe — original illustration 1, reference 1253Original colors & callouts · Select to enlarge

19. Close the door.

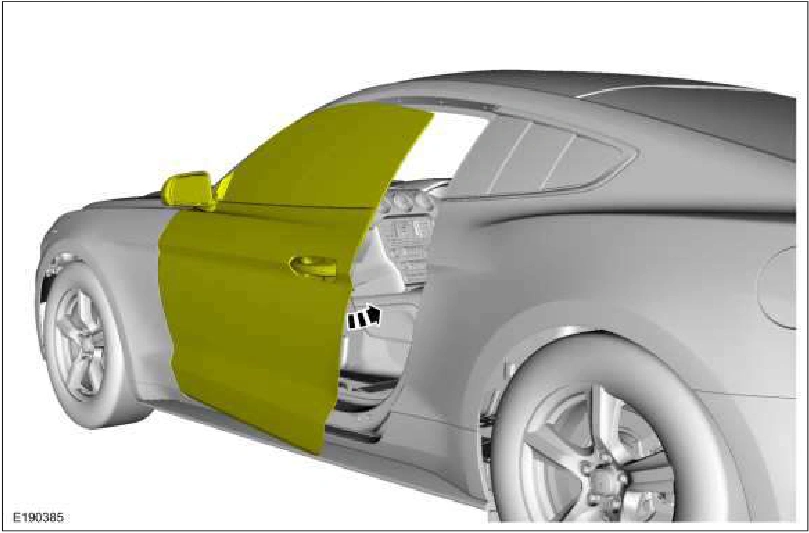

Door Window Glass Adjustment - Coupe — original illustration 2, reference 1253Original colors & callouts · Select to enlarge

20. Check the door glass in/out to body dimensions and adjust the door glass runs and regulator rails relative to the door as necessary.

Source reference 1253
