2016 workshop · Body & Paint

Door Window Glass Adjustment - Coupe

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,254 / 6,619HTML edition
← Chapter contentsProcedure contents
Door Window Glass Adjustment - Coupe — original illustration 1, reference 1254Original colors & callouts · Select to enlarge

21. Lower the front door window glass.

1. Install the front door window control switch.

2. Lower the front door window glass.

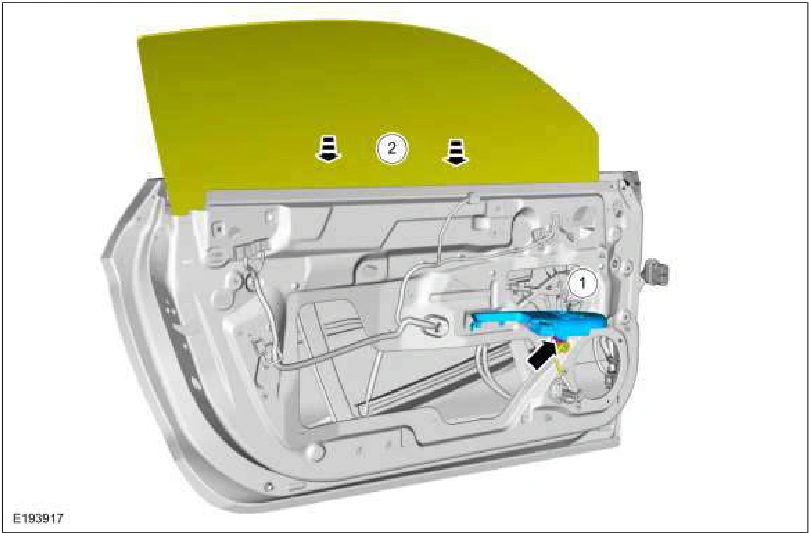

Door Window Glass Adjustment - Coupe — original illustration 2, reference 1254Original colors & callouts · Select to enlarge

22. Tighten the front door glass regulator rail nuts. Torque : 97 lb.in (11 Nm)

Source reference 1254

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
