Door Window Glass Adjustment - Coupe

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,251 / 6,619HTML edition

← Chapter contents Procedure contents

Door Window Glass Adjustment - Coupe — original illustration 1, reference 1251Original colors & callouts · Select to enlarge

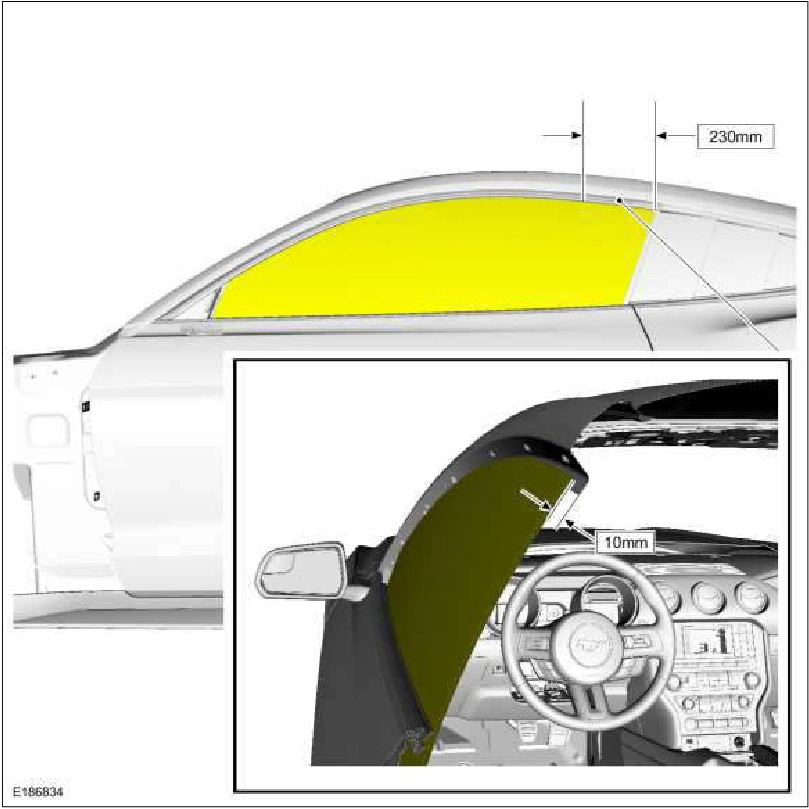

15. Measure the gap between the top of the front door glass and the body at the specified locations.

Door Window Glass Adjustment - Coupe — original illustration 2, reference 1251Original colors & callouts · Select to enlarge

16. Open the door.

Source reference 1251
