Rear Quarter Window Regulator - Convertible — 2016 workshop reference 1299

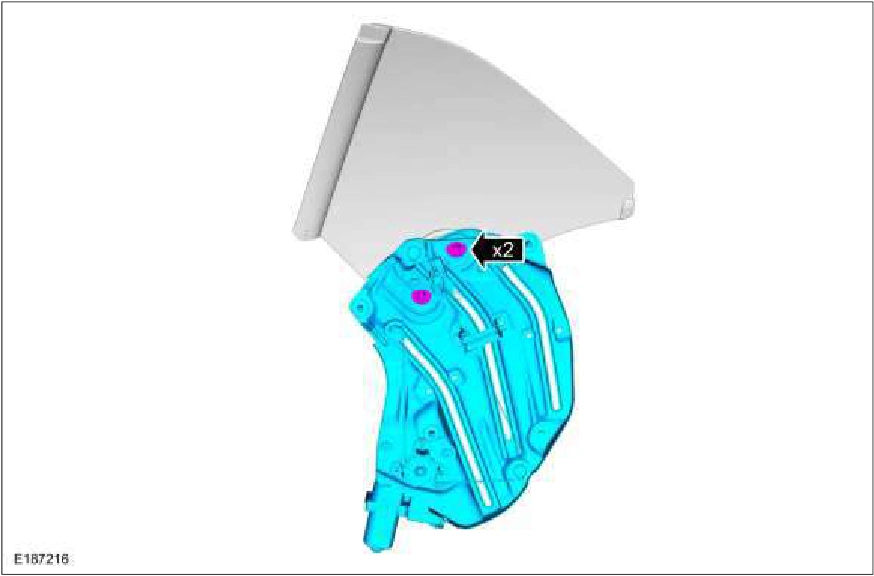

Torque : 97 lb.in (11 Nm)

Rear Quarter Window Regulator - Convertible — original illustration 1, reference 1299Original colors & callouts · Select to enlarge

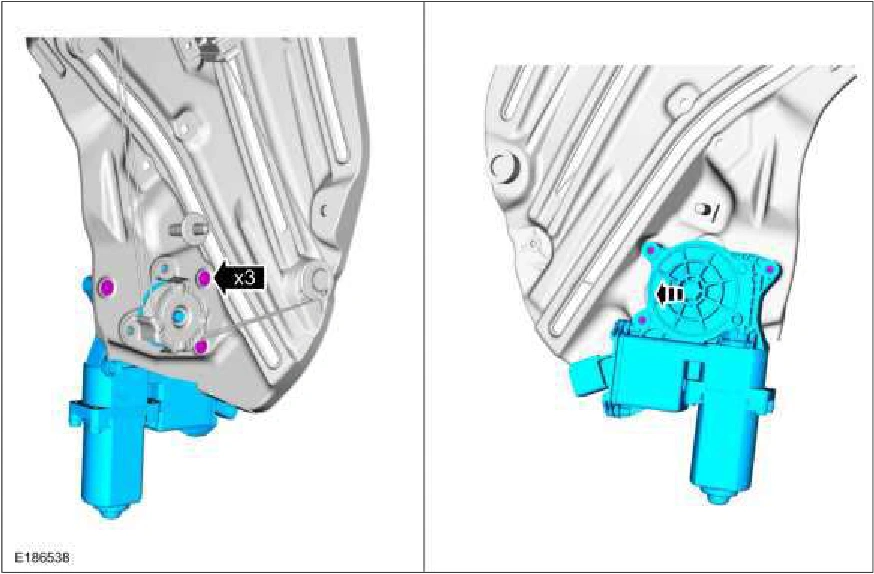

11. NOTE: This step is only necessary when installing a new component.

Remove the bolts and the rear quarter window regulator motor.

Rear Quarter Window Regulator - Convertible — original illustration 2, reference 1299Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Carry out the rear quarter window glass adjustment. Refer to: Rear Quarter Window Glass Adjustment - Convertible (501-11 Glass, Frames and Mechanisms, General Procedures).

Source reference 1299
