501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 07/28/2015

Front Door Window Control Switch

Removal

NOTE: LHD shown, RHD similar.

Both doors

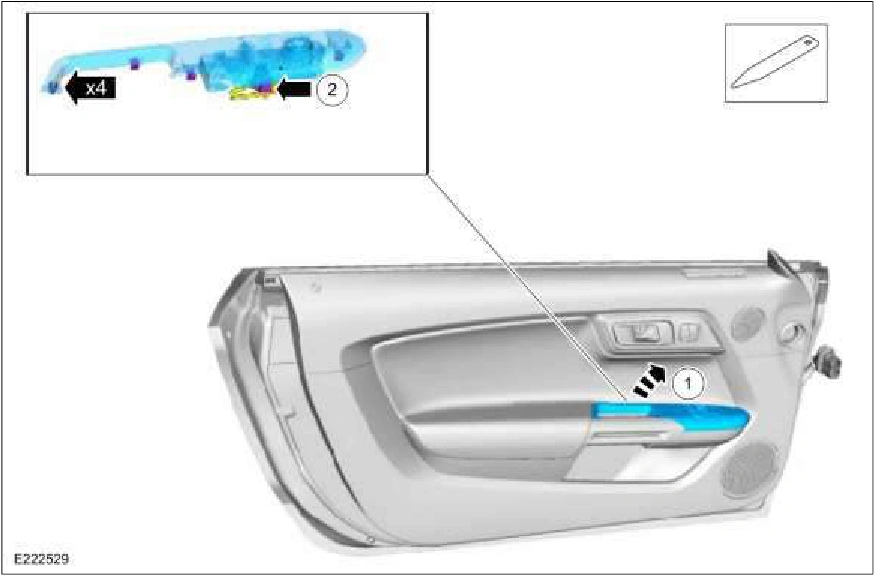

1. NOTE: LH side shown, RH side similar.

Remove the front door window control switch.

1. Remove the front door window control switch and the bezel assembly.

2. Disconnect the front door window control switch electrical connector.

Front Door Window Control Switch — original illustration 1, reference 1302Original colors & callouts · Select to enlarge

Driver side

2. NOTE: This step is only necessary when installing a new component.

Remove the front door window control switch.

1. Remove the retainers.

2. Remove the front door window control switch from the bezel.

Source reference 1302
