Front Door Window Control Switch — 2016 workshop reference 1303

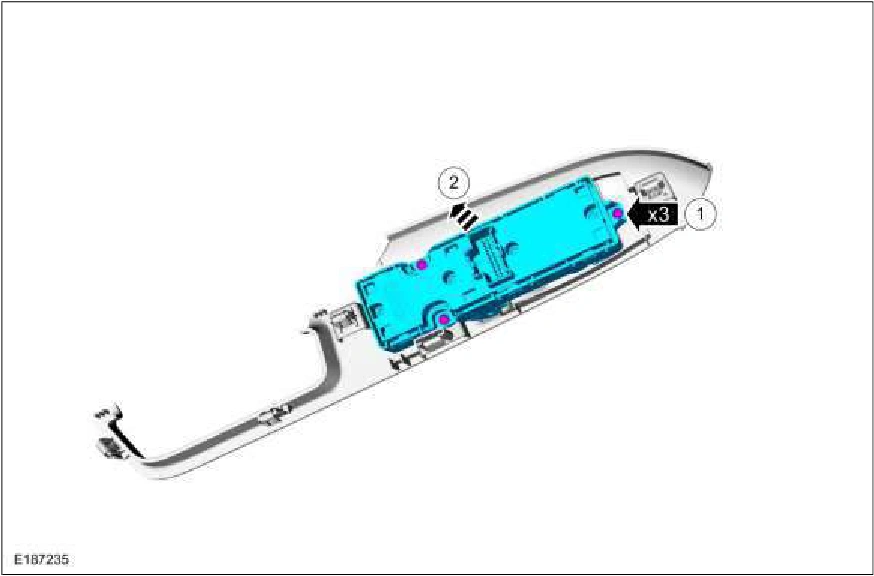

Front Door Window Control Switch — original illustration 1, reference 1303Original colors & callouts · Select to enlarge

Passenger side

3. NOTE: This step is only necessary when installing a new component.

Remove the front door window control switch.

1. Release the retaining tab from the front door window control switch.

2. Remove the front door window control switch from the bezel.

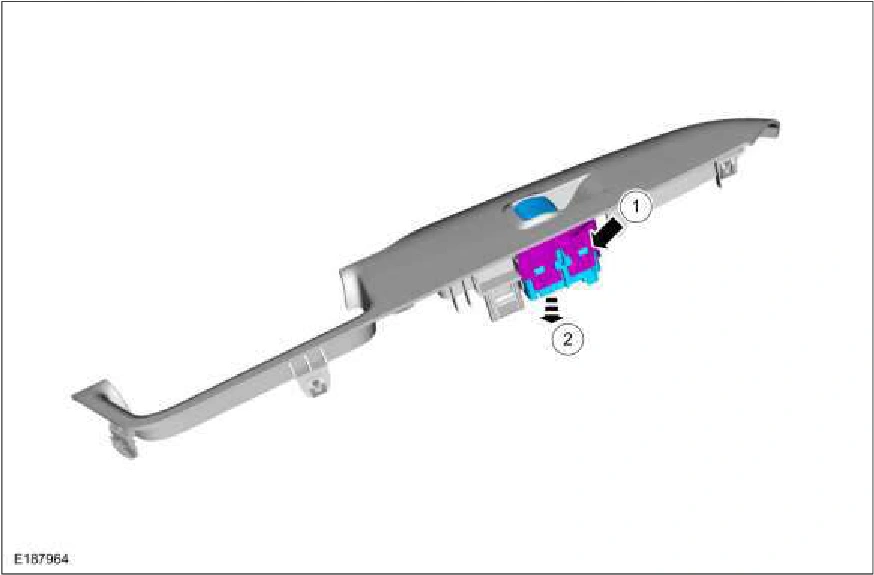

Front Door Window Control Switch — original illustration 2, reference 1303Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1303
