Front Door Window Glass — 2016 workshop reference 1306

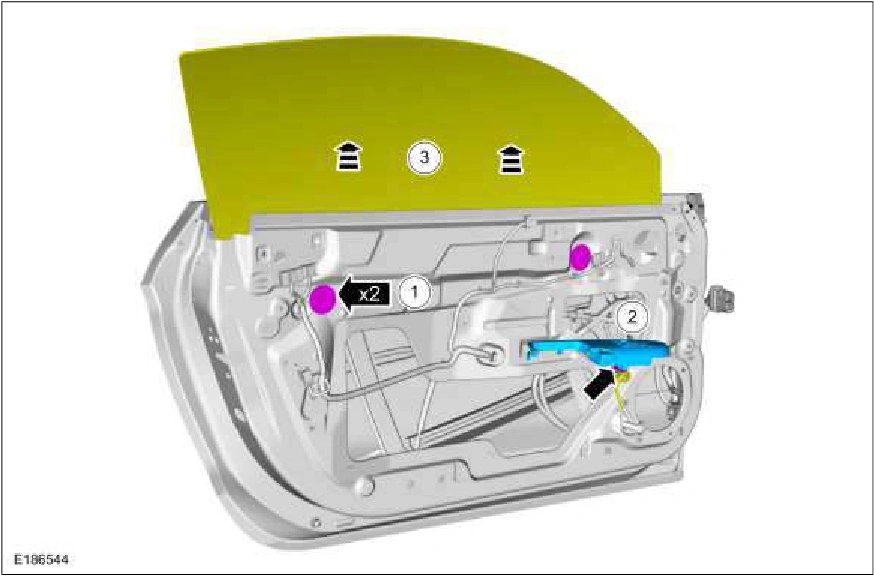

Front Door Window Glass — original illustration 1, reference 1306Original colors & callouts · Select to enlarge

4. Remove the front door window glass.

1. Remove the bolts. Torque : 80 lb.in (9 Nm)

2. Using a non-marring trim tool from the outboard side of the glass, pry the tang on each clip back, releasing the window glass.

3. Release the clip.

4. Remove the front window glass.

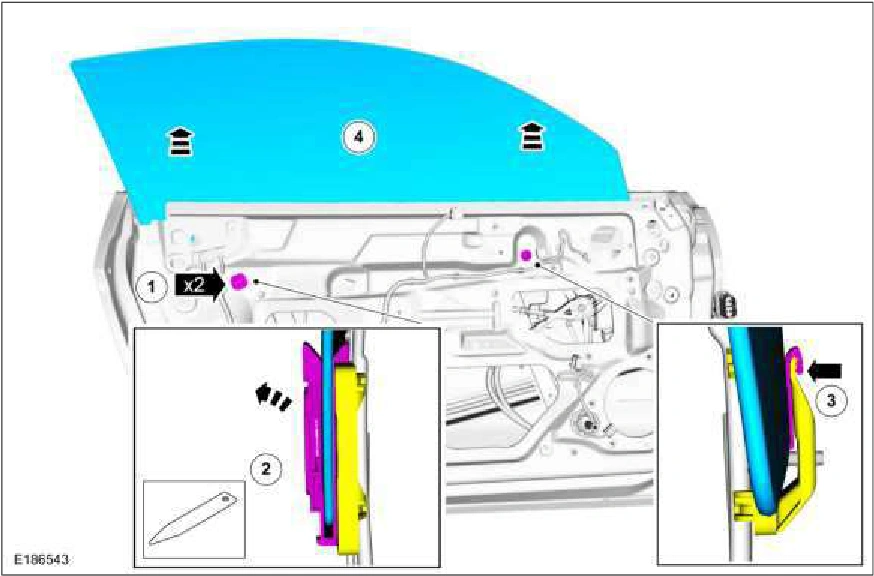

Front Door Window Glass — original illustration 2, reference 1306Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Carry out the door window glass adjustment.
