Front Door Window Regulator — 2016 workshop reference 1309

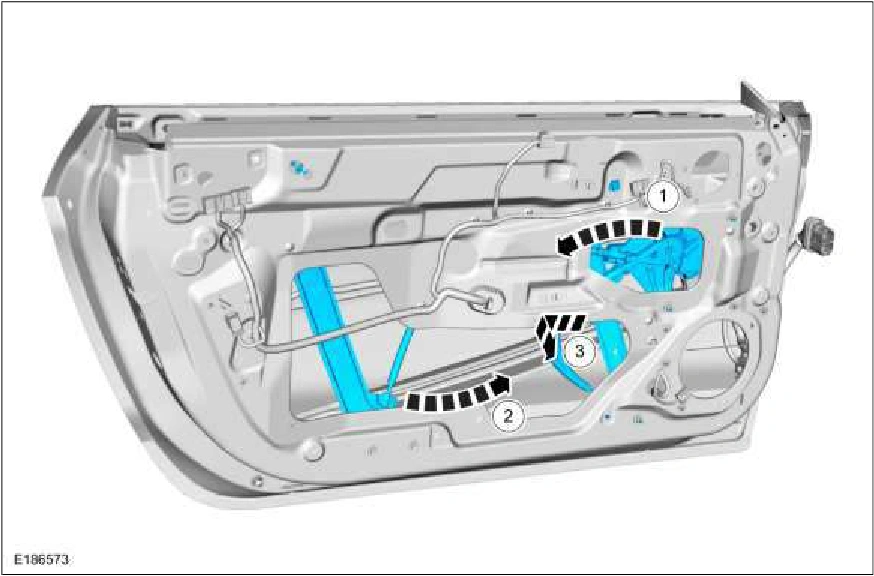

Front Door Window Regulator — original illustration 1, reference 1309Original colors & callouts · Select to enlarge

4. NOTE: This step is only necessary when installing a new component.

Remove the front door window regulator motor. Refer to: Front Door Window Regulator Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).

Installation

1. To install, reverse the removal procedure.

2. Align the front door window regulator to the marks made previous during removal.

3. Carry out the door window glass adjustment. Refer to: Door Window Glass Adjustment - Coupe (501-11 Glass, Frames and Mechanisms, General Procedures). Refer to: Door Window Glass Adjustment - Convertible (501-11 Glass, Frames and Mechanisms, General Procedures).

4. If the door is equipped with one-touch up the power window motor must be initialized. Carry out the power door window initialization. Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).

Source reference 1309
