Front Door Window Regulator Motor

501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Base Part Number: 1523200

Removal

NOTE: LH side shown, RH side similar.

1. Remove the front door window regulator. Refer to: Front Door Window Regulator (501-11 Glass, Frames and Mechanisms, Removal and Installation).

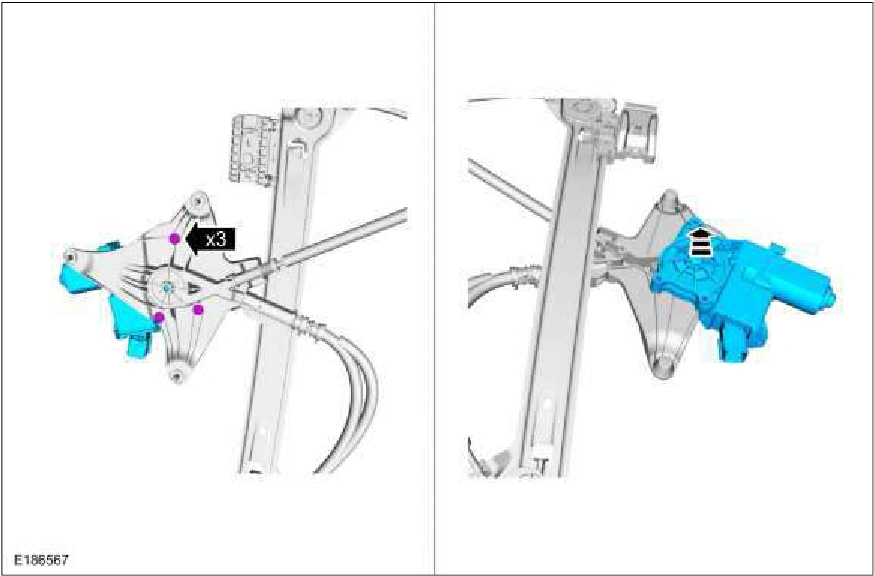

2. Remove the retainers and the front door window regulator motor.

Front Door Window Regulator Motor — original illustration 1, reference 1310Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Carry out the door window glass adjustment. Refer to: Door Window Glass Adjustment - Coupe (501-11 Glass, Frames and Mechanisms, General Procedures). Refer to: Door Window Glass Adjustment - Convertible (501-11 Glass, Frames and Mechanisms, General Procedures).

3. If the door is equipped with one-touch up the power window motor must be initialized. Carry out the power door window initialization. Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
