Front Door Glass Run and Bracket — 2016 workshop reference 1312

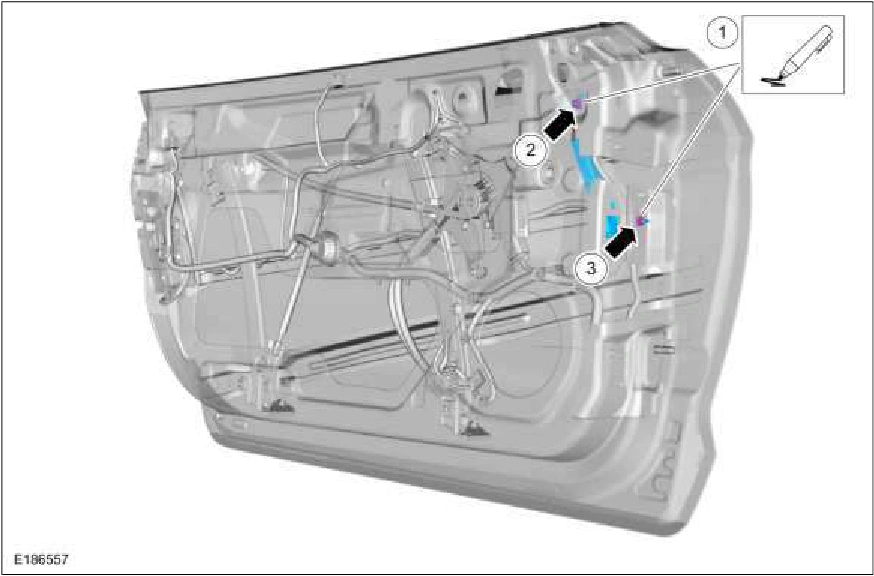

Front Door Glass Run and Bracket — original illustration 1, reference 1312Original colors & callouts · Select to enlarge

Aft front door glass run

4. Remove the front door window glass. Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

5. Mark the location and remove the aft front door glass run.

1. Mark the location of the retainers for installation.

2. Loosen the top nut. Torque : 97 lb.in (11 Nm)

3. Remove the lower bolt and the aft front door glass run. Torque : 97 lb.in (11 Nm)

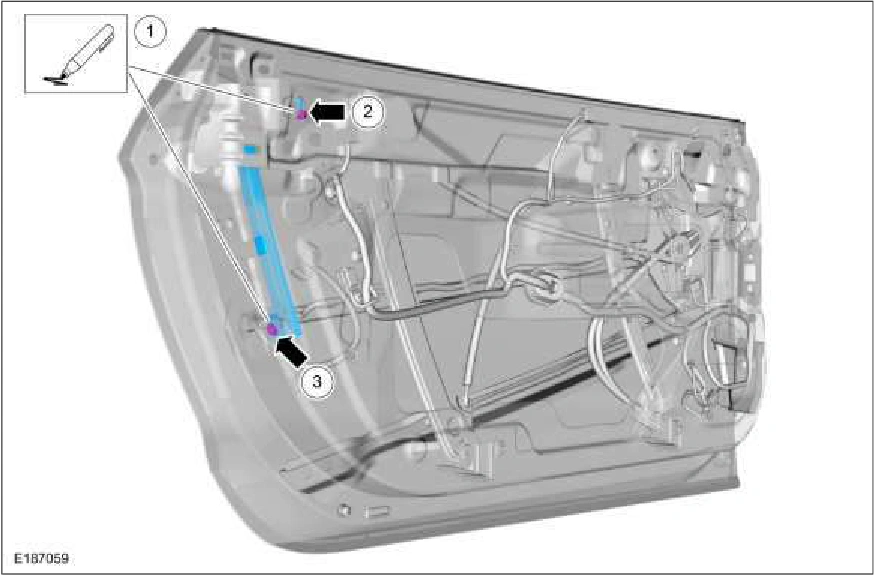

Front Door Glass Run and Bracket — original illustration 2, reference 1312Original colors & callouts · Select to enlarge

Installation

Source reference 1312
