501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 01/21/2016

Front Door Glass Run and Bracket

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Fore front door glass run

1. Raise the front door window glass to full up position.

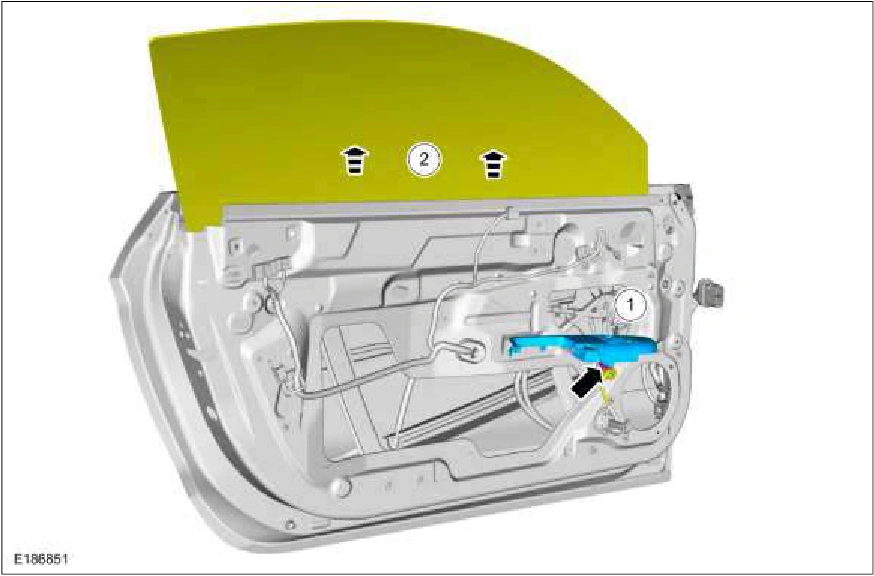

1. Install the front door window control switch.

2. Raise the front door window glass to full up position.

Front Door Glass Run and Bracket — original illustration 1, reference 1311Original colors & callouts · Select to enlarge

2. Remove the front door speaker. Refer to: Front Door Speaker LH (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Refer to: Front Door Speaker RH (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

3. Mark the location and remove the fore front door glass run.

1. Mark the location of the retainers for installation.

2. Loosen the top nut. Torque : 97 lb.in (11 Nm)

3. Remove the lower nut and the fore front door glass run. Torque : 97 lb.in (11 Nm)
