Front Door Window Regulator

501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Base Part Number: 1523200

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door window glass. Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

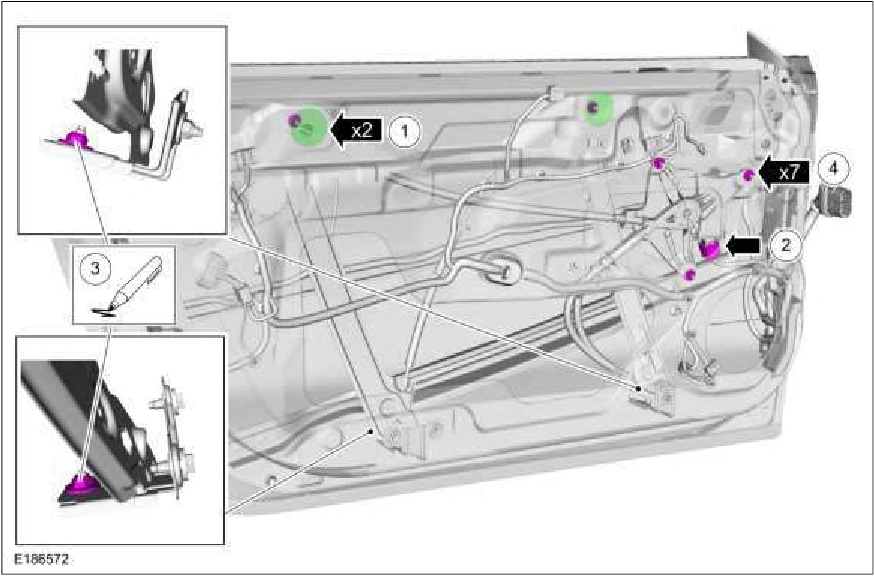

2. Mark the location and remove the front door window regulator nuts.

1. Remove the adhesive tapes.

2. Disconnect the front door window regulator electrical connector and position aside the wiring harness. Torque : 97 lb.in (11 Nm)

3. Mark the location of the nuts for installation.

4. Remove the nuts.

Front Door Window Regulator — original illustration 1, reference 1308Original colors & callouts · Select to enlarge

3. Remove the front door window regulator.

1. Rotate the front half of the window regulator rearward.

2. Rotate the rear half of the window regulator forward.

3. Remove the front door window regulator.

Source reference 1308
