Front Door Window Glass

501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Base Part Number: 21410

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door speaker. Refer to: Front Door Speaker LH (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation). Refer to: Front Door Speaker RH (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

2. Remove the front door upper and the lower watershield.

1. Remove the front door lower watershield.

2. Remove the front door upper watershield.

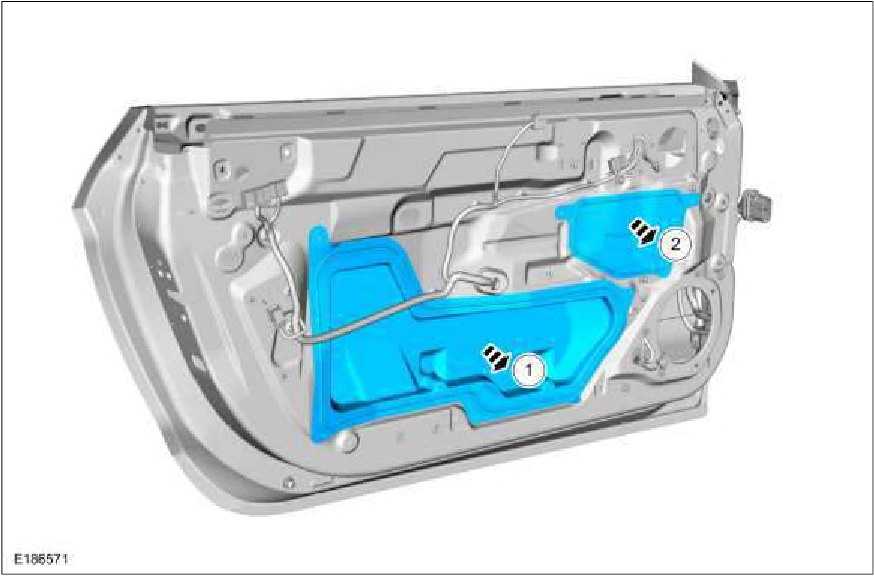

Front Door Window Glass — original illustration 1, reference 1305Original colors & callouts · Select to enlarge

3. Raise the front door window glass to full up position.

1. Remove the adhesive covers.

2. Install the front door window control switch.

3. Raise the front door window glass to full up position.

Source reference 1305
