Rear Quarter Window Regulator Motor - Convertible — 2016 workshop reference 1301

501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Rear Quarter Window Regulator Motor - Convertible

Removal

NOTE: RH side shown, LH side similar.

1. Remove the rear quarter window regulator. Refer to: Rear Quarter Window Regulator - Convertible (501-11 Glass, Frames and Mechanisms, Removal and Installation).

2. Remove the bolts and the rear quarter window regulator motor.

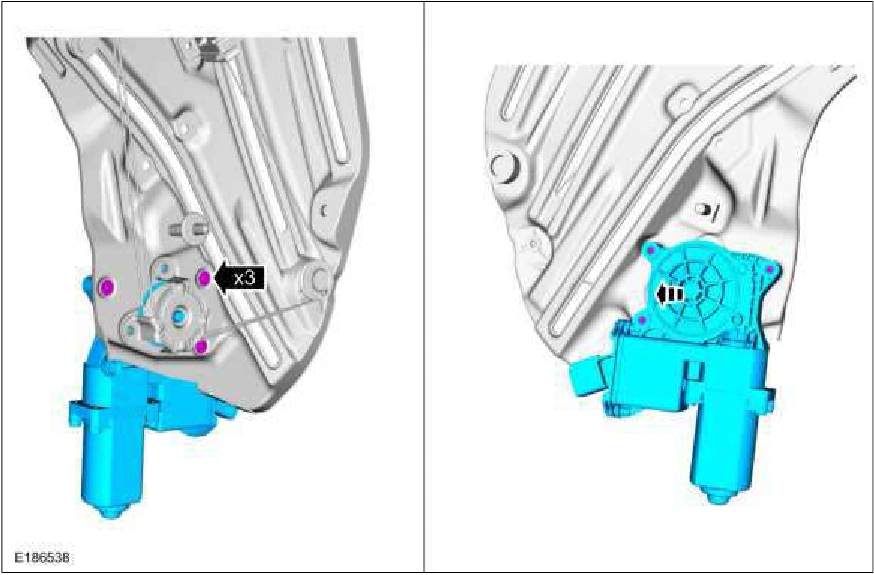

Rear Quarter Window Regulator Motor - Convertible — original illustration 1, reference 1301Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Carry out the rear quarter window glass adjustment. Refer to: Rear Quarter Window Glass Adjustment - Convertible (501-11 Glass, Frames and Mechanisms, General Procedures).

Source reference 1301
