501-12 Instrument Panel and Console 2016 Mustang

Removal and Installation Procedure revision date: 05/15/2015

Auxiliary Power Point

Special Tool(s) / General Equipment

Auxiliary Power Point — original illustration 1, reference 1314Original colors & callouts · Select to enlarge

501-194 Remover, Power Point TKIT-2014D-FL_ROW TKIT-2014D-ROW2

Removal

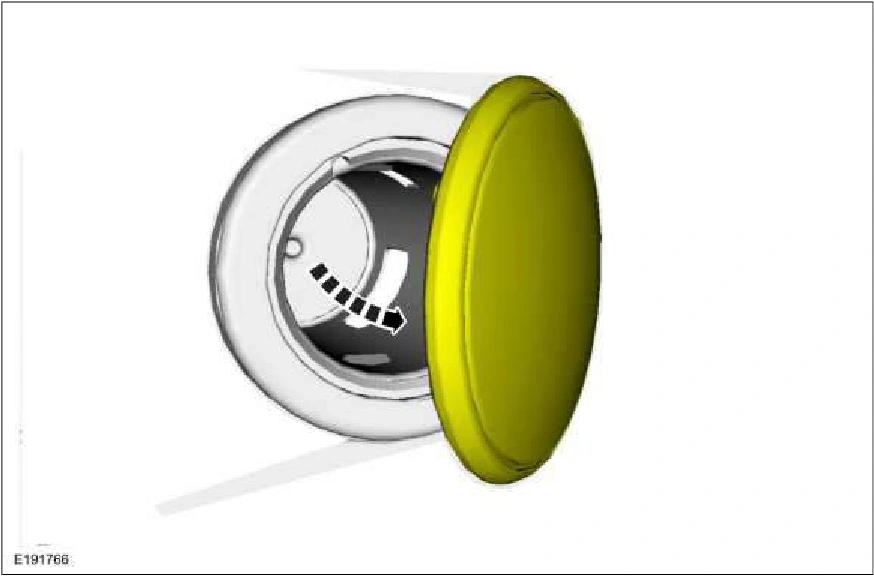

1. Open the power point cover.

Auxiliary Power Point — original illustration 2, reference 1314Original colors & callouts · Select to enlarge

2. Position the power point extractor so that it engages in the adjacent slots in the power point socket. Use Special Service Tool: 501-194 Remover, Power Point.

Source reference 1314
