Floor Console

501-12 Instrument Panel and Console 2016 Mustang

Removal and Installation Procedure revision date: 10/21/2015

Base Part Number: S043B04

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

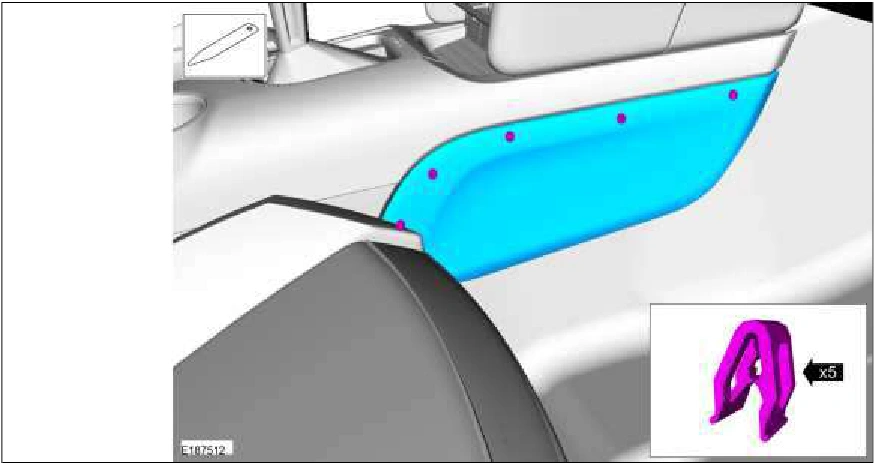

Floor Console — original illustration 1, reference 1317Original colors & callouts · Select to enlarge

2. Release the clips and the floor console LH side trim panel. Use the General Equipment: Interior Trim Remover

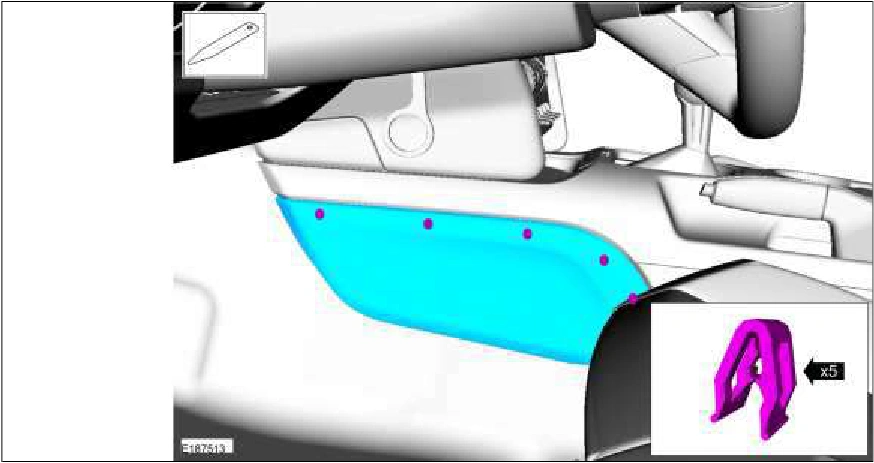

Floor Console — original illustration 2, reference 1317Original colors & callouts · Select to enlarge

Source reference 1317
