Floor Console — 2016 workshop reference 1319

Floor Console — original illustration 1, reference 1319Original colors & callouts · Select to enlarge

6. Remove the floor console upper bolts. Torque : 18 lb.in (2 Nm)

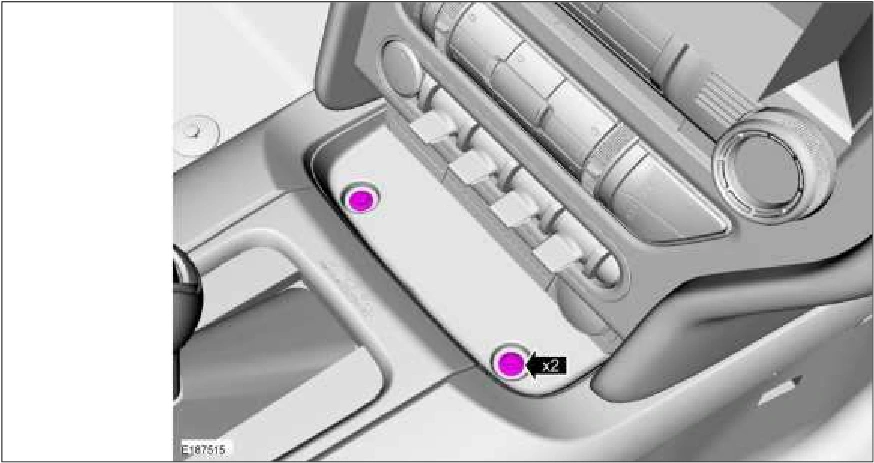

Floor Console — original illustration 2, reference 1319Original colors & callouts · Select to enlarge

7. NOTE: Automatic transmission shown, manual transmission similar.

Starting from the front corners, carefully pry up the bezel and position it out of the way. Use the General Equipment: Interior Trim Remover

Source reference 1319
