Floor Console — 2016 workshop reference 1321

Floor Console — original illustration 1, reference 1321Original colors & callouts · Select to enlarge

10. Remove the RH side front retainers. Torque : 18 lb.in (2 Nm)

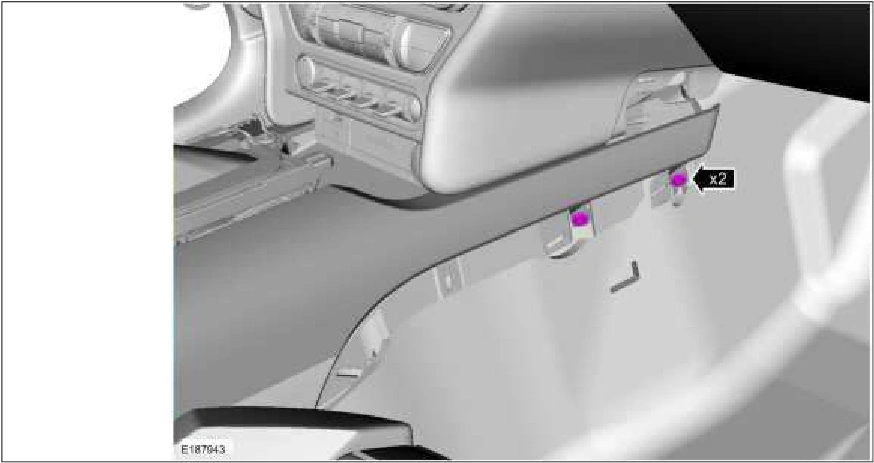

Floor Console — original illustration 2, reference 1321Original colors & callouts · Select to enlarge

11. Remove the LH side front retainers. Torque : 18 lb.in (2 Nm)

Source reference 1321
