Floor Console

501-12 Instrument Panel and Console

2016 MustangReference 1,318 / 6,619HTML edition
← Chapter contentsProcedure contents

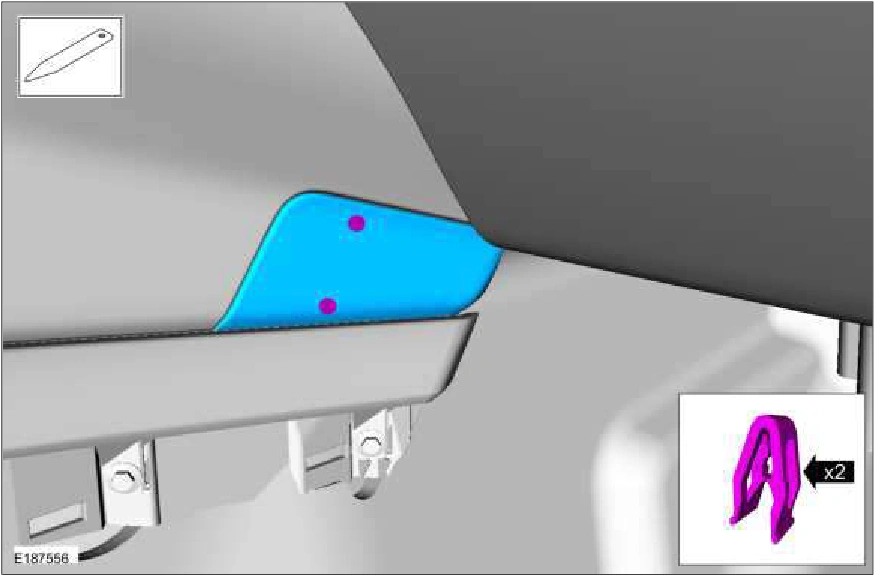

3. Release the clips and remove the floor console RH side bolt cover. Use the General Equipment: Interior Trim Remover

Floor Console — original illustration 1, reference 1318Original colors & callouts · Select to enlarge

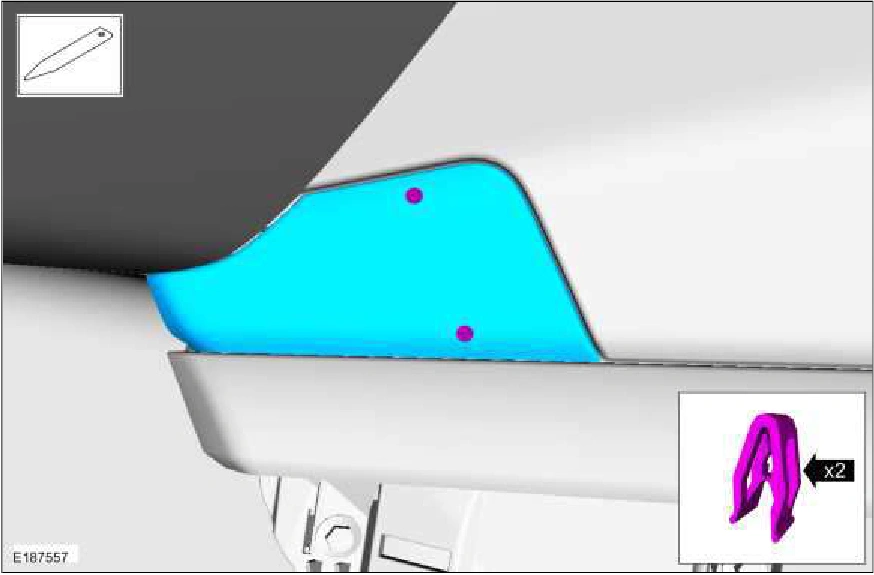

4. Release the clips and the floor console LH side bolt cover. Use the General Equipment: Interior Trim Remover

Floor Console — original illustration 2, reference 1318Original colors & callouts · Select to enlarge

5. Remove the stowage area mat.

Source reference 1318
