Auxiliary Power Point — 2016 workshop reference 1315

Auxiliary Power Point — original illustration 1, reference 1315Original colors & callouts · Select to enlarge

Step 3

1. Install the receiver cup.

2. Install and tighten the wing nut. Use Special Service Tool: 501-194 Remover, Power Point.

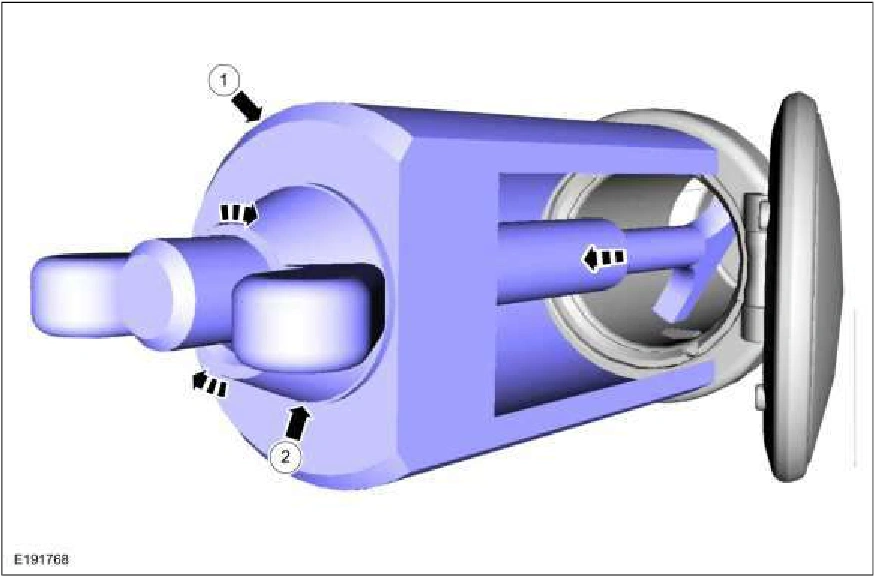

Auxiliary Power Point — original illustration 2, reference 1315Original colors & callouts · Select to enlarge

4. Tighten the wing nut to pull the power point socket out of the retainer. Use Special Service Tool: 501-194 Remover, Power Point.

Source reference 1315
