Floor Console — 2016 workshop reference 1320

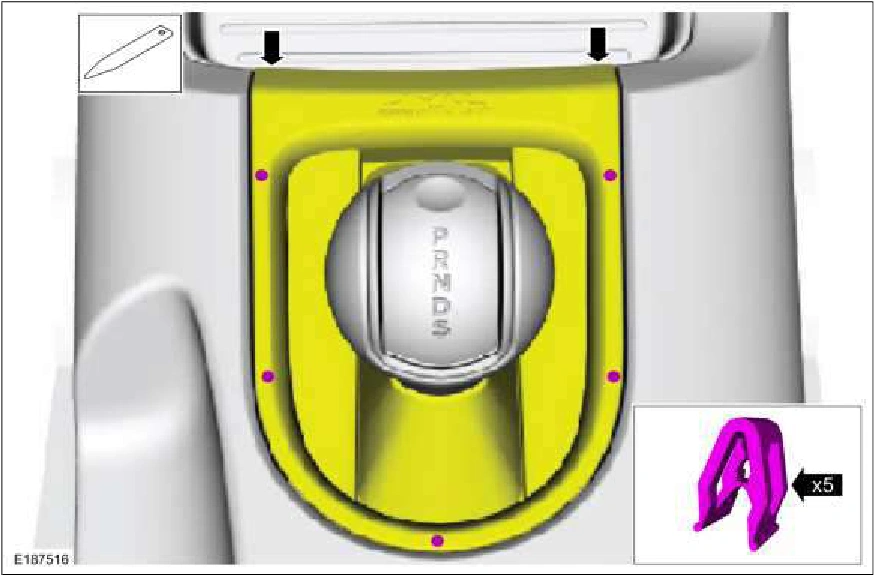

Floor Console — original illustration 1, reference 1320Original colors & callouts · Select to enlarge

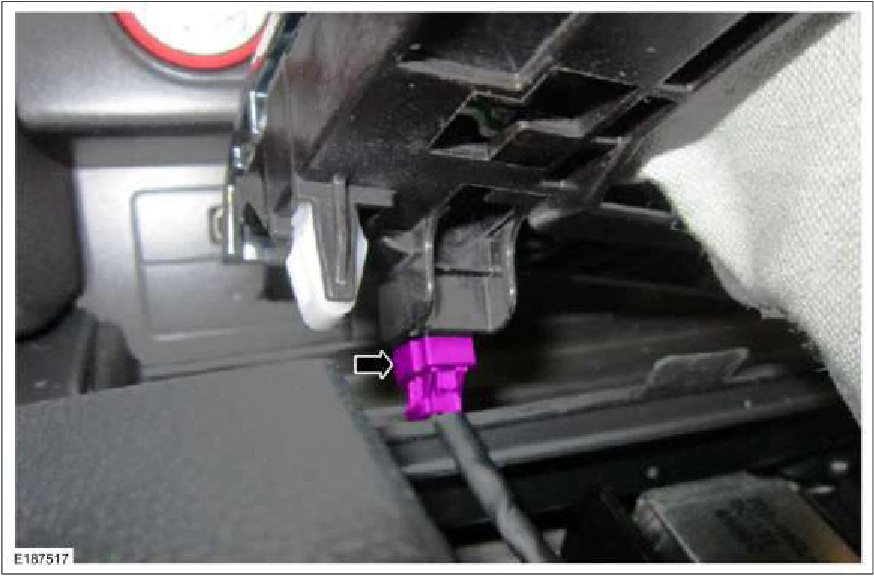

8. Disconnect the electrical connector.

Floor Console — original illustration 2, reference 1320Original colors & callouts · Select to enlarge

9. Open the floor console lid.
