Floor Console — 2016 workshop reference 1323

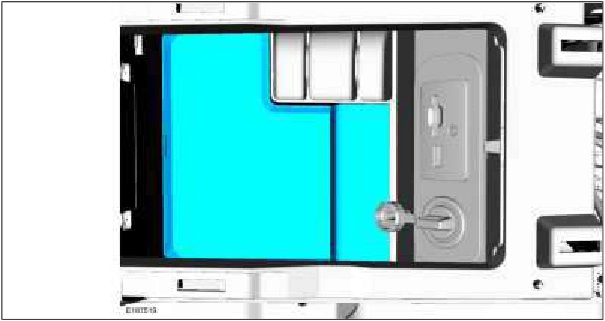

Floor Console — original illustration 1, reference 1323Original colors & callouts · Select to enlarge

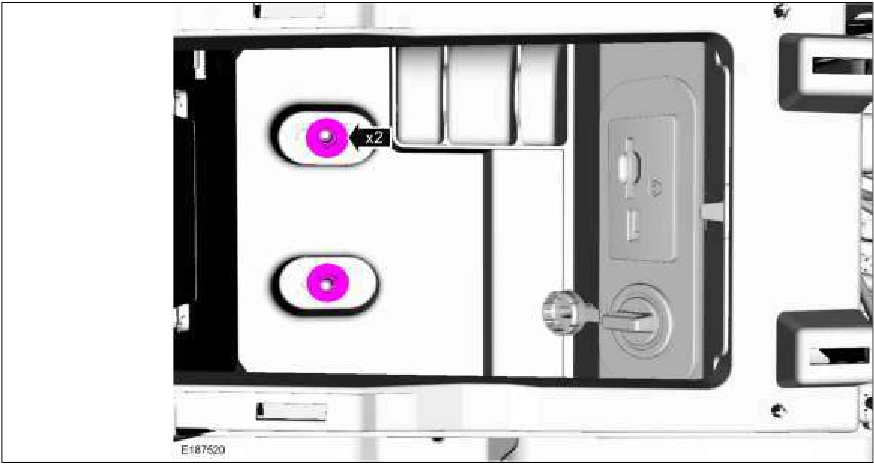

14. Remove the two nuts. Torque : 18 lb.in (2 Nm)

Floor Console — original illustration 2, reference 1323Original colors & callouts · Select to enlarge

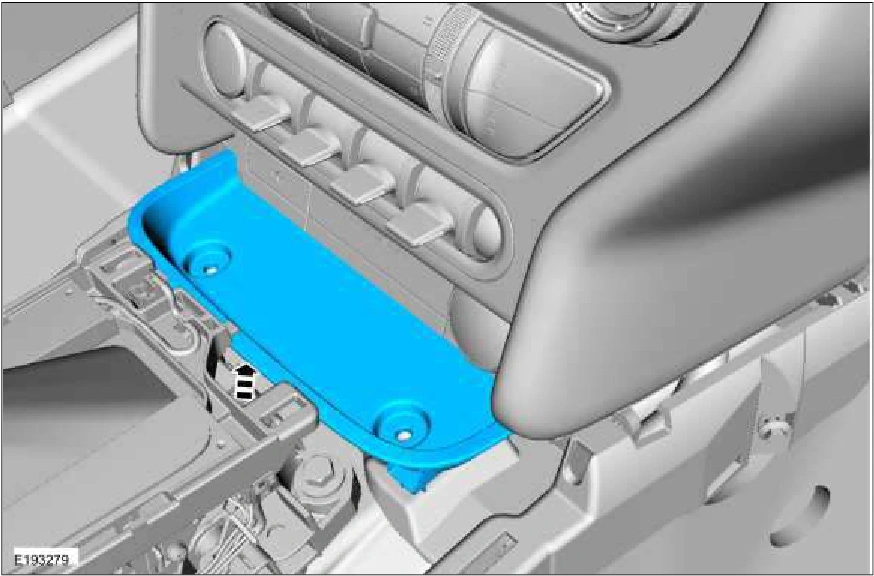

15. Remove the stowage area tray.

Floor Console — original illustration 3, reference 1323Original colors & callouts · Select to enlarge

Source reference 1323
