Glove Compartment

501-12 Instrument Panel and Console 2016 Mustang

Removal and Installation Procedure revision date: 05/15/2015

Removal

Glove compartment

1. The glove compartment and the passenger knee air bag are serviced as an assembly. Refer to: Passenger Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

Glove compartment upper stowage bin latch

2. Open the glove compartment.

3. Remove the bolts and the glove compartment upper stowage bin latch.

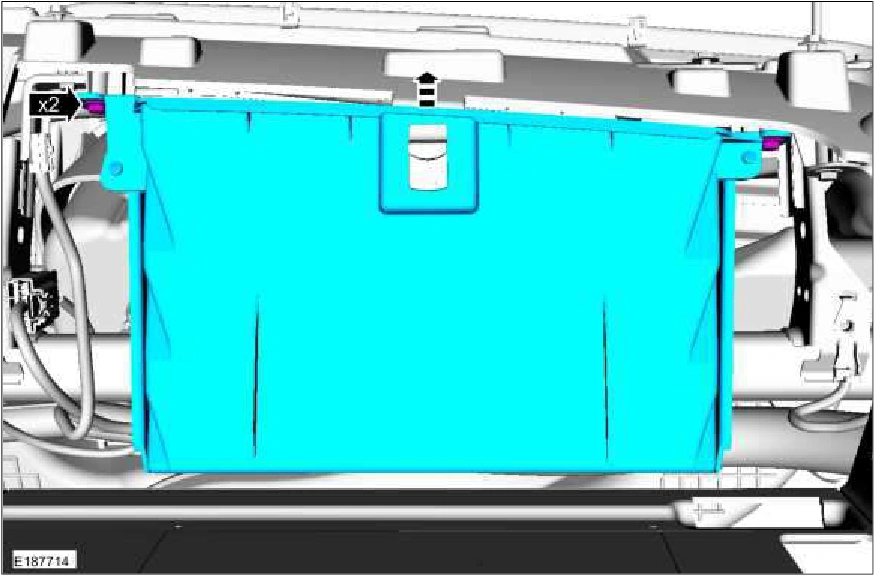

Glove Compartment — original illustration 1, reference 1326Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1326
