Instrument Panel

501-12 Instrument Panel and Console

2016 MustangReference 1,329 / 6,619HTML edition
← Chapter contentsProcedure contents

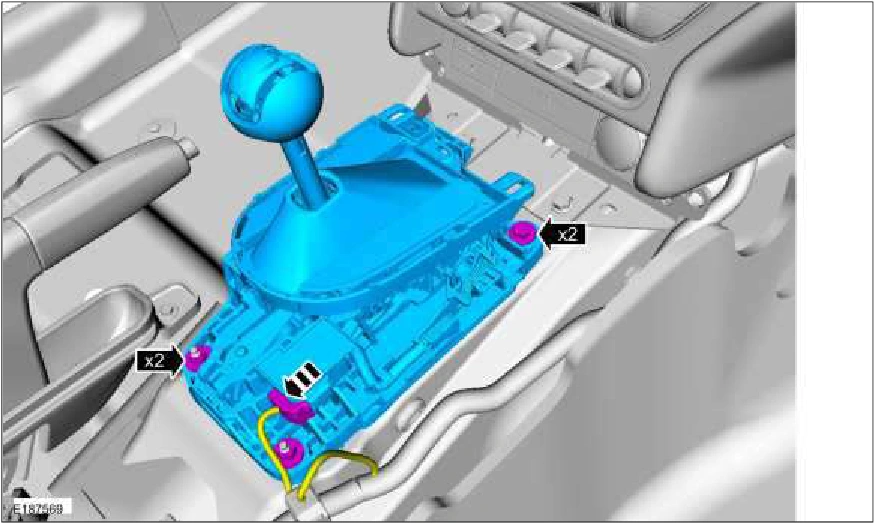

Torque : 80 lb.in (9 Nm)

Instrument Panel — original illustration 1, reference 1329Original colors & callouts · Select to enlarge

All vehicles

9. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation). Refer to: A-Pillar Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

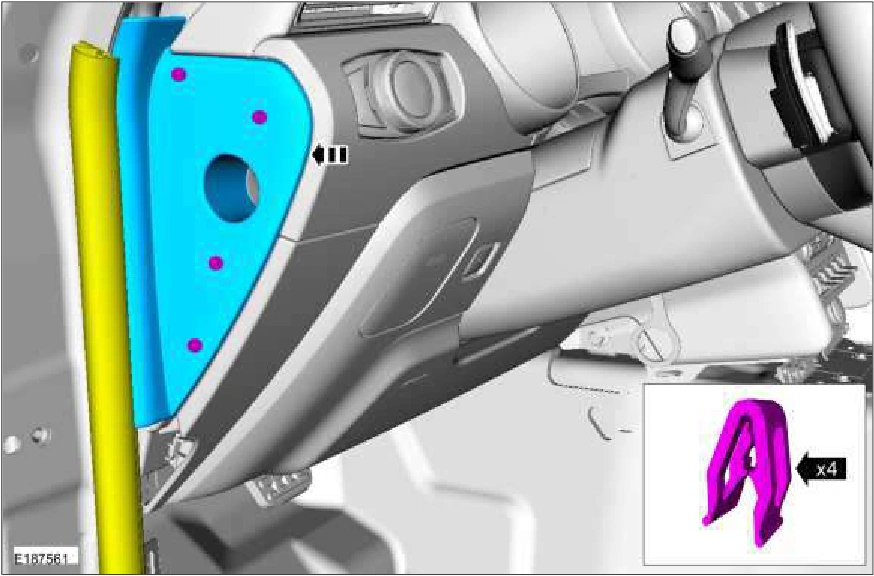

10. Position aside the weather strip, release the clips and remove the LH instrument panel finish panel.

Instrument Panel — original illustration 2, reference 1329Original colors & callouts · Select to enlarge

11. Position aside the weather strip, release the clips and remove the RH instrument panel finish panel.

Source reference 1329
