Instrument Panel — 2016 workshop reference 1331

Instrument Panel — original illustration 1, reference 1331Original colors & callouts · Select to enlarge

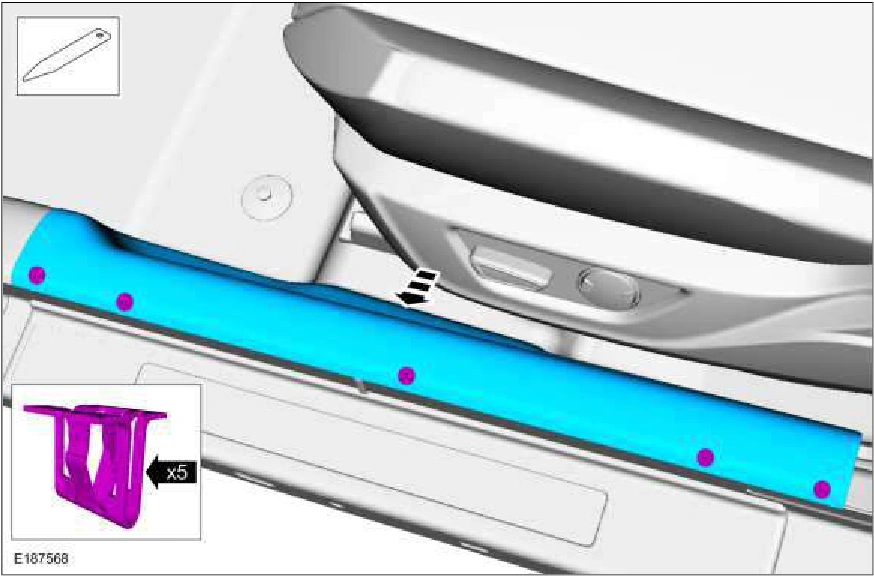

14. Release the clips and remove the LH scuff plate. Use the General Equipment: Interior Trim Remover

Instrument Panel — original illustration 2, reference 1331Original colors & callouts · Select to enlarge

15. Remove the driver knee airbag. Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

16. Remove the hood latch release handle. Refer to: Hood Latch Release Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

17. Release the pin-type retainer, the clips and remove the LH cowl trim panel.
